What is Intermodulation Distortion

Content Summary

This article delves into the definition, causes, and specific effects of intermodulation Distortion (IMD) in dynamic microphones, condenser microphones, and wireless microphones. Combining national standards with electroacoustic principles, it analyzes the unique hazards of IMD as a form of Nonlinear Distortion and introduces measurement methods and optimization strategies. By comparing it with concepts such as Frequency Distortion, Phase Distortion, and Transient Distortion, it comprehensively reveals the profound impact of intermodulation distortion on audio quality.

Intermodulation Distortion: The “Invisible” Nonlinear Distortion in Microphones and Audio Systems

In the professional audio field, intermodulation distortion (IMD) is a highly destructive form of nonlinear distortion. It occurs when a composite audio signal with two or more frequency components passes through an audio device, causing the system to generate new frequency components that do not exist in the original signal due to nonlinear response.

According to the national standard GB/T 2900.86-2009:

“A type of distortion where a composite audio signal with two frequency components passes through a playback device, resulting in new frequency components in its output. These new frequencies include the harmonics of the two single-frequency signals and various combinations of their sum and difference signals, constituting one of the forms of nonlinear distortion.”

Unlike Harmonic Distortion (which only produces integer multiples of the original frequency), intermodulation distortion generates complex sum and difference frequencies between the original frequencies, such as f₁ + f₂, f₁ - f₂, 2f₁ - f₂, etc. These new frequencies often fall within the audible range, sounding like “noise,” “harshness,” or “metallic,” severely impairing the clarity and naturalness of the sound.

This article will delve into the causes of intermodulation distortion in microphone systems, measurement methods, and its actual impact on dynamic, condenser, and wireless microphones. It will also integrate concepts such as frequency distortion, phase distortion, and transient distortion to help you comprehensively understand this critical nonlinear issue in audio systems.

A. What is intermodulation distortion? Why is it so dangerous?

1. The Essence of Intermodulation Distortion

Intermodulation distortion is not simply a change in volume or frequency shift. It is the direct result of a system's nonlinear behavior. When two or more signals of different frequencies are input simultaneously, the system cannot linearly superimpose them but instead “mixes” them to produce new frequencies.

For example:

Input two pure tones: f₁ = 1 kHz, f₂ = 1.5 kHz;

If the system exhibits nonlinearity, the output may include:

Difference frequency: f₂ - f₁ = 500 Hz

Sum frequency: f₁ + f₂ = 2.5 kHz

More complex combinations: 2f₁ - f₂ = 500 Hz, 2f₂ - f₁ = 2 kHz

These new frequencies interfere with the original sound, causing the audio to sound “muddy” or “harsh.”

2. Why is intermodulation distortion harder to detect but more dangerous than harmonic distortion?

Harmonic distortion produces frequencies that are integer multiples of the original frequency, which the brain easily “categorizes” as tonal changes;

Intermodulation distortion produces arbitrary frequency combinations that the brain cannot recognize, resulting in a feeling of “discomfort” or “unnaturalness”;

Therefore, even if Total Harmonic Distortion (THD) is low, high intermodulation distortion can still cause significant degradation in sound quality.

B. Main Causes of Intermodulation Distortion

1. Nonlinear Movement of the Microphone Diaphragm

When Sound Pressure is too high, the displacement of the microphone diaphragm no longer varies proportionally with sound pressure, entering a nonlinear region.

For example:

At high Sound Pressure Levels (SPL), the diaphragm of a condenser microphone may over-deform;

This causes nonlinear changes in capacitance, resulting in signal distortion;

2. Nonlinear gain of the preamplifier

The preamplifier is one of the most common sources of intermodulation distortion in the audio chain.

If the amplifier operates near saturation;

Or uses low-quality operational amplifiers;

it may produce a nonlinear response to composite signals;

3. RF compression and demodulation distortion in wireless microphones

Wireless microphones compress audio signals at the transmitter end and demodulate them at the receiver end.

Compression algorithms may introduce nonlinearity;

phase errors during demodulation may also cause intermodulation products;

especially in multi-channel systems, channel-to-channel interference may exacerbate intermodulation distortion.

C. Manifestation of Intermodulation Distortion in Different Types of Microphones

Different types of microphones exhibit varying degrees of intermodulation distortion due to differences in their structural and circuit designs.

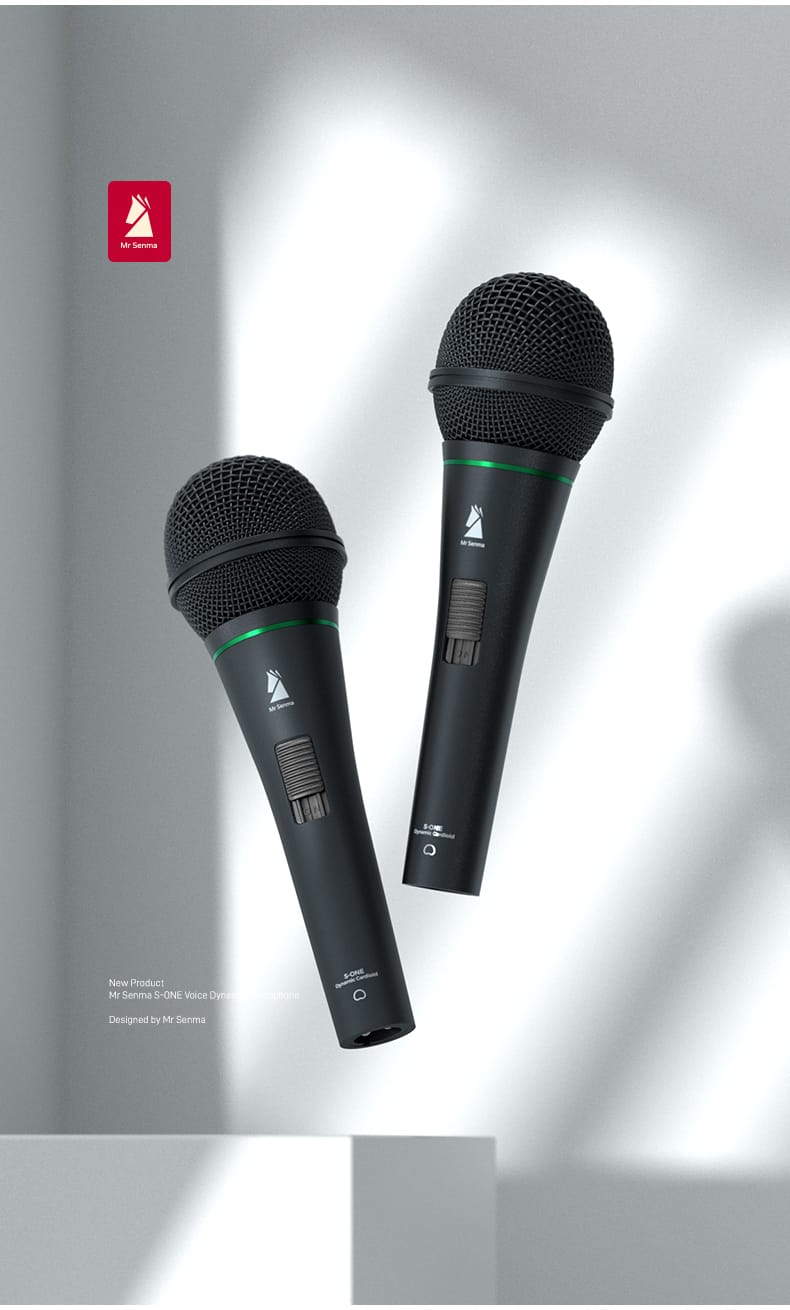

1. Dynamic Microphones

Dynamic microphones typically have a high nonlinearity threshold, performing stably at moderate sound pressure levels, but may still produce intermodulation distortion under extreme conditions.

a) Mechanical nonlinearity of the diaphragm and magnetic circuit

At extremely high sound pressure levels, the diaphragm of a dynamic microphone may collide with the limiter;

or the magnetic field distribution within the magnetic circuit may become uneven;

resulting in nonlinear distortion in the output signal, including intermodulation components;

b) Circuit design influence

Although dynamic microphones typically do not require external power, a poorly designed preamplifier connected to them may still be a source of intermodulation distortion.

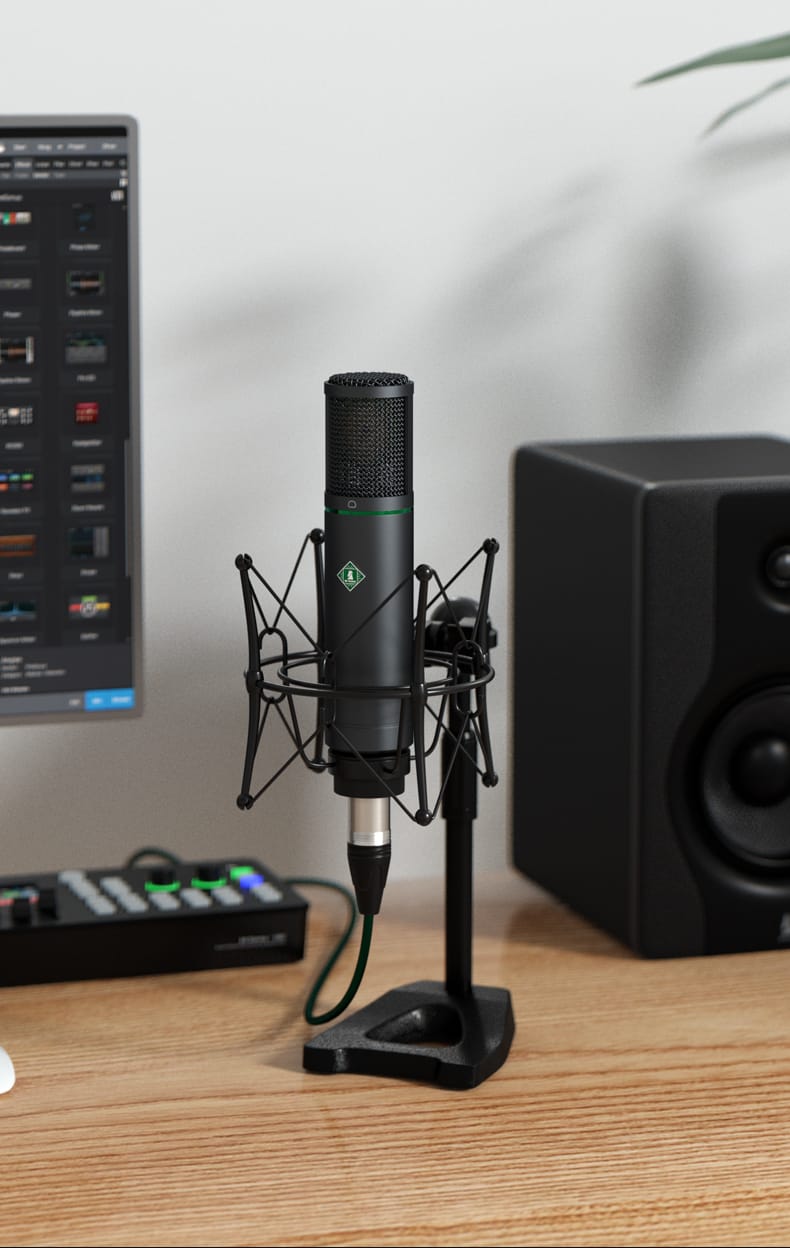

2. Condenser Microphones

Condenser microphones have high sensitivity and wide frequency response, but they are also more prone to entering the nonlinear region at high sound pressure levels.

a) Electrostatic field nonlinear effects

Condenser microphones operate based on electrostatic fields;

when sound pressure is too high, excessive diaphragm displacement causes nonlinear capacitance changes;

This effect is particularly pronounced in small-diaphragm condenser microphones;

b) Preamplifier and Power Supply Design

Condenser microphones incorporate built-in preamplifiers (JFET or IC);

If the supply voltage is insufficient or the amplifier design is poor, intermodulation distortion is likely to occur at high signal levels;

High-end condenser microphones typically employ dual power supply rail designs or high Dynamic Range circuits to reduce the risk of intermodulation distortion.

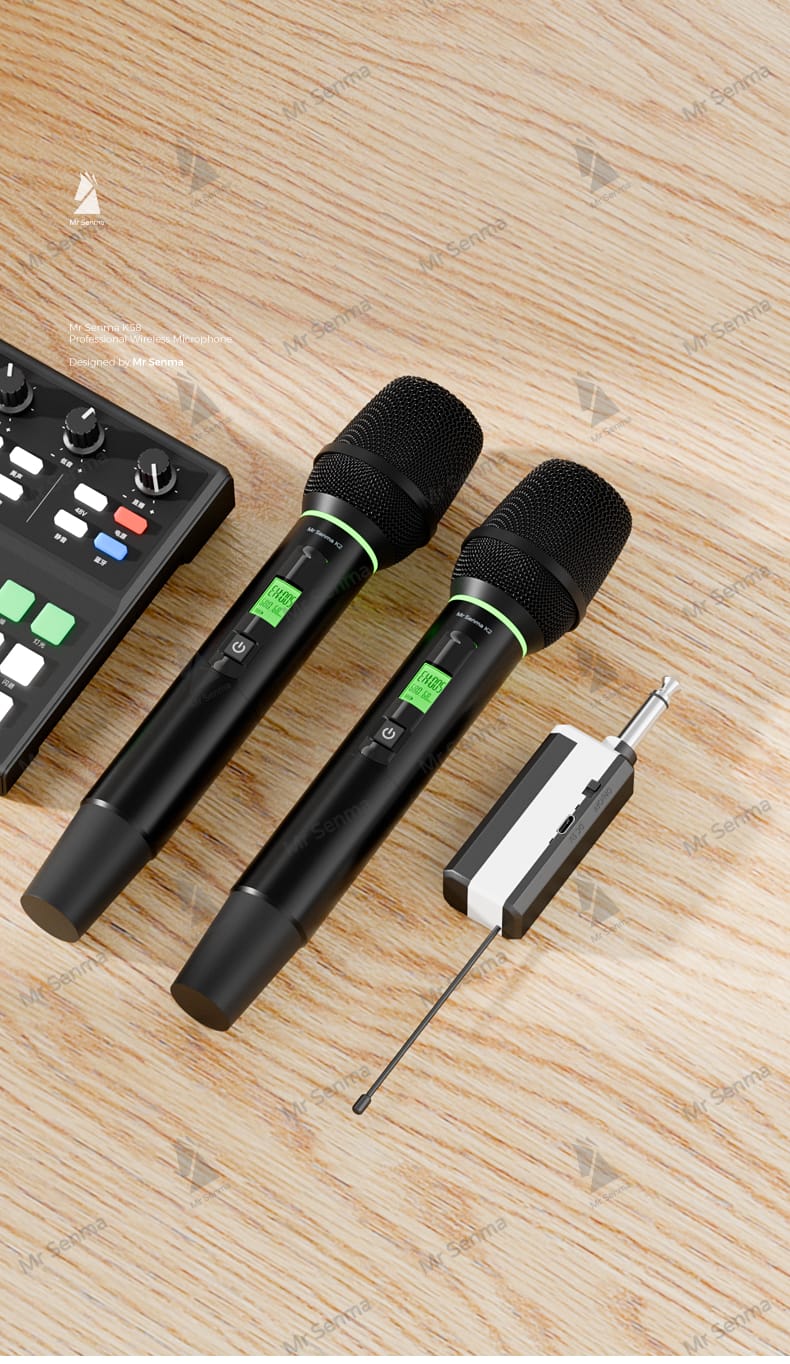

3. Wireless Microphones

Wireless microphones are among the systems with the highest risk of intermodulation distortion, involving multiple nonlinear stages such as audio, RF, and digital processing.

a) Nonlinearity introduced by audio compression

To save bandwidth, wireless systems often use compression coding (e.g., companding);

The nonlinearity during compression/expansion can lead to intermodulation products;

b) RF modulation and demodulation distortion

FM or digital modulation systems may exhibit nonlinear responses at signal edges;

In multi-channel systems, adjacent channel interference may also induce intermodulation;

c) Quantization errors in digital signal processing (DSP)

Low-bit-rate ADCs/DACs may introduce quantization noise;

Under complex signals, quantization errors may manifest as intermodulation distortion;

D. How to measure and control intermodulation distortion?

1. Common measurement methods

Two-tone Test:

Input two sine waves of equal amplitude and close frequencies (e.g., 1 kHz and 1.1 kHz);

Observe the output spectrum using an audio analyzer;

Measure the levels of intermodulation products such as f₂ - f₁ (100 Hz) and f₁ + f₂ (2.1 kHz);

SMPTE IMD Test:

Use a composite signal of 60 Hz and 7 kHz;

Measure the sideband levels at 7 kHz ± 60 Hz;

Intermodulation distortion is typically expressed as the **ratio of intermodulation product levels to the main signal level (dB)**, with lower values being better.

2. Control Strategies

a) Select microphones and preamplifiers with high dynamic range

High dynamic range devices maintain linearity over a wider signal range;

Reduce the risk of entering the nonlinear region;

b) Avoid input overload

Properly configure the gain structure;

Use attenuators (Pads) to handle high sound pressure sources;

c) Optimize wireless system settings

Use high-quality, low-compression wireless protocols;

Avoid multi-channel interference;

Regularly check frequency coordination and signal strength;

E. Relationship between intermodulation distortion and other distortions

1. Difference from frequency distortion

Frequency distortion is linear distortion, manifested as inconsistent gain across different frequencies;

Intermodulation distortion is nonlinear distortion, producing new frequencies;

Both may coexist, but their causes and effects differ;

2. Relationship with phase distortion

Although phase distortion is a linear distortion, in multi-frequency signals, phase inconsistencies may exacerbate intermodulation effects;

especially in multi-microphone recordings, phase and intermodulation jointly affect sound clarity;

3. Synergistic effects with transient distortion

High intermodulation distortion can cause the “attack” portion of transient signals to be contaminated by spurious frequencies;

resulting in “blurred” or “lack of impact” in sound;

F. Intermodulation distortion is an “audio killer” that cannot be ignored in audio systems

Intermodulation distortion (IMD) is less frequently mentioned than total harmonic distortion (THD), but its impact on audio quality is more subtle and severe. Whether it is a dynamic microphone, condenser microphone, or wireless microphone, intermodulation distortion may occur under high sound pressure, complex signals, or poor circuit design.

From the purity of the Fundamental Frequency to the accuracy of frequency response, and the clarity of transient response, intermodulation distortion subtly undermines the performance of an audio system. Only by selecting high-quality equipment, properly configuring gain structures, and optimizing system matching can intermodulation distortion be maximally suppressed, restoring authentic, transparent, and detailed sound.

As a professional Microphone Manufacturer, we rigorously test intermodulation distortion performance during the product design phase to ensure that every product maintains exceptional linear performance in complex audio environments.
