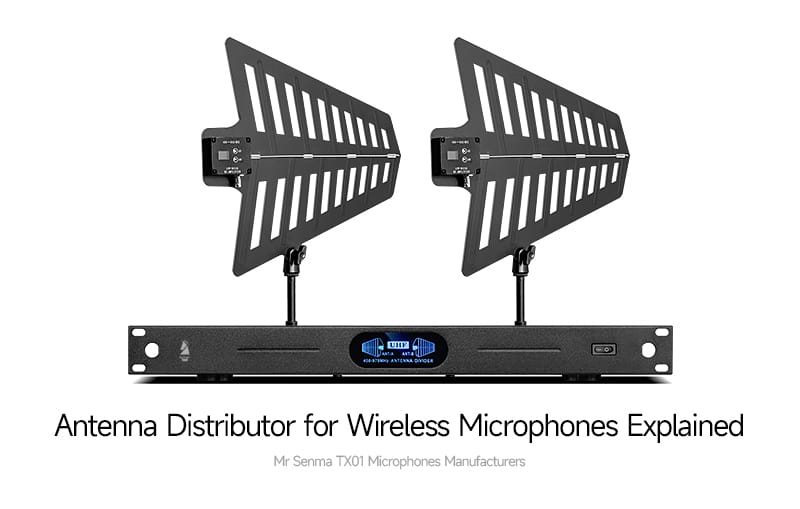

Mr Senma TX01 Antenna Distributor for Wireless Microphones

Antenna Distributor for Wireless Microphones: The Key to Reliable RF Signal Distribution

In wireless Microphones systems, the Microphones antenna distributor (Antenna Distributor) is a critical device for enabling multiple receivers to share antenna resources and enhance signal stability. It amplifies the RF signals received by one or more shared antennas and uniformly distributes them to multiple wireless Microphones receivers, thereby avoiding the redundancy and interference caused by redundant antenna installations.

Whether in large-scale performances, conference systems, broadcast venues, or film and television productions, the antenna distributor plays a crucial role. This article will comprehensively analyze this key component from multiple perspectives, including technical principles, classification types, and application scenarios, and explore its impact on wireless Microphones systems, dynamic Microphones, and condenser Microphones systems.

Additionally, we will combine previously introduced content such as “Phantom Power for Microphones Explained” and “Microphones Frequency Response Explained” to help readers build a more comprehensive wireless audio knowledge system and enhance the overall stability and reliability of audio systems.

1. What is a Microphones antenna distributor?

A Microphones antenna distributor is a device used in conjunction with diversity wireless Microphones receivers to amplify and distribute RF signals received by a shared antenna to the input ports of multiple wireless receivers.

In simple terms:

It allows multiple wireless Microphones receivers to share a set of external antennas;

It enhances signal coverage and reception quality;

It is an indispensable auxiliary device for achieving efficient and stable wireless audio transmission.

Such devices are typically used in scenarios requiring multiple wireless Microphones to operate in coordination, such as stage performances, large-scale conferences, and broadcast/television production.

2. How does an antenna distributor work?

The core functions of an antenna distributor include:

1. RF signal amplification

RF signals received by wireless Microphones at long distances or in complex environments are often weak. The antenna distributor integrates a low-noise amplifier (LNA) internally, effectively enhancing signal strength and reducing the risk of disconnections caused by signal attenuation.

2. Multi-channel signal distribution

Through the built-in RF splitter, the amplified RF signals are evenly distributed to multiple output ports, with each port connected to a wireless receiver. This design ensures that multiple receivers can obtain high-quality input signals.

3. Impedance Matching and Isolation

To prevent signal reflection and mutual interference, the antenna distributor performs 50Ω standard impedance matching and provides electrical isolation between channels, ensuring that each receiver operates independently and stably.

3. Common Types of Antenna Distributors

Based on their functions and usage, antenna distributors can be categorized into the following types:

1. Passive Antenna Distributor

No external power supply required;

Signal distribution achieved through physical structure;

Lower cost, but cannot amplify signals, suitable for short-range, small-scale systems.

2. Active Antenna Distributor

Built-in low-noise amplifier (LNA);

Significantly enhances signal strength;

Suitable for long-range or multi-channel wireless systems;

Requires an external power supply or PoE power.

3. Multi-band Support Antenna Distributor

Supports multiple wireless frequency bands such as UHF, VHF, and 2.4GHz;

Suitable for wireless Microphones systems of various brands and models;

Especially practical for cross-border events or mixed-system use.

4. The Role of Antenna Distributors in Wireless Microphones Systems

1. Enhancing Signal Reception Quality

Using an antenna distributor allows centralized management of RF signals, reducing intermodulation interference caused by multiple antenna configurations. This is particularly important for large-scale performances or conferences using a large number of wireless Microphones.

2. Simplifying Cabling and Management

No need to configure antennas individually for each receiver, saving space, reducing maintenance costs, and improving system neatness and safety.

3. Extending Signal Coverage Range

By enhancing signal strength through built-in amplifiers, wireless Microphones can maintain stable connections over a larger area, making them particularly suitable for outdoor or large-scale environments.

5. The Impact and Role of Antenna Distributors on Different Types of Microphones

1. Role for Wireless Microphones

Wireless Microphones are the primary application for antenna distributors. Proper use of antenna distributors offers the following advantages:

Improve reception sensitivity, reduce dropouts and frequency interruptions;

Optimize spectrum utilization efficiency, reduce channel conflicts;

Extend transmission distance, adapt to more complex venue requirements;

Simplify multi-channel deployment processes, improve on-site work efficiency.

Especially when using high-end wireless systems (such as Shure Axient, Sennheiser Digital 6000 series), pairing with a high-quality antenna distributor can further unlock their performance potential.

Mr Senma P200 Dual Channel Professional Wireless Microphones

2. Impact on dynamic Microphones

While dynamic Microphones do not rely on RF signal transmission, they may be indirectly affected by antenna distributors if connected to devices with wireless transmitter modules (e.g., wireless DI boxes, wireless monitoring systems).

For example:

In a band performance, bass or guitar signals are transmitted via wireless DI;

Using an antenna distributor can centrally manage the reception paths of all wireless devices;

Enhancing the overall system's stability and consistency.

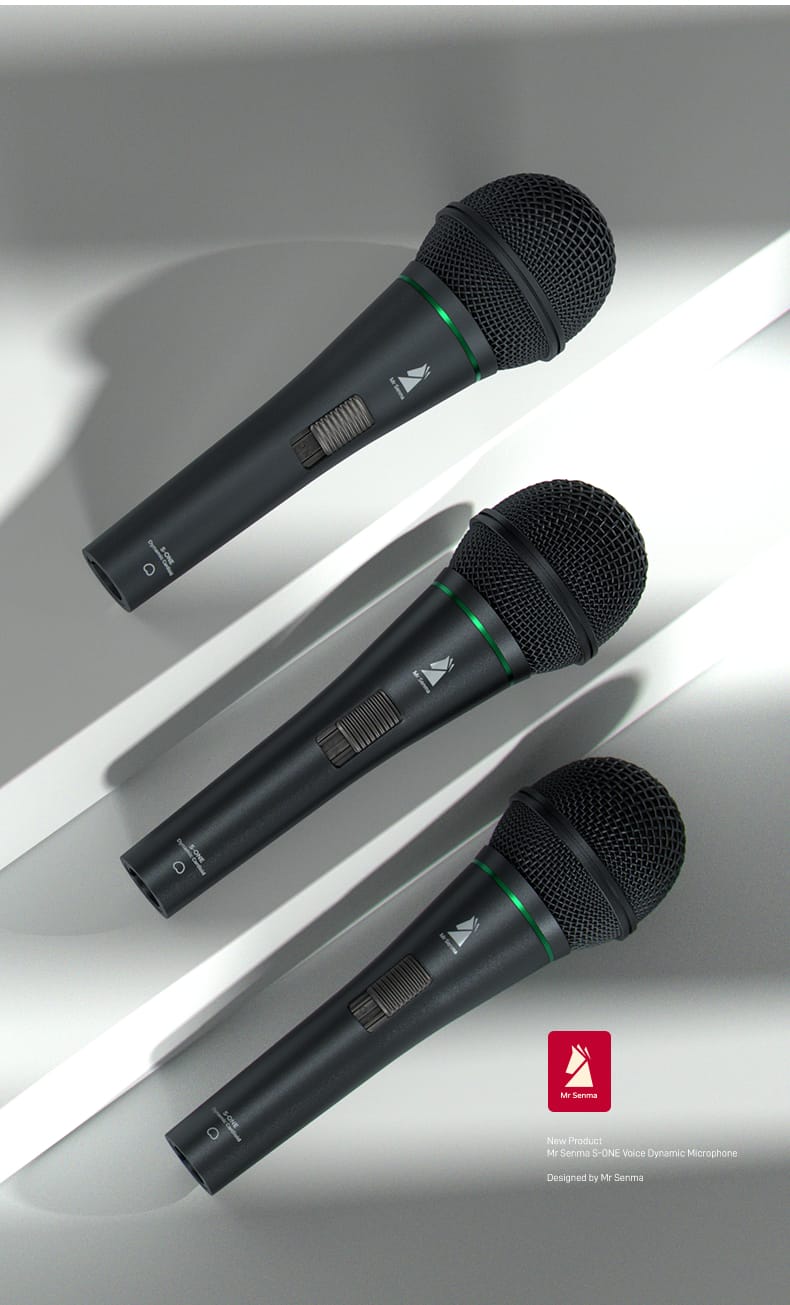

Mr Senma S-ONE Dynamic Vocal Microphones

3. Impact on Condenser Microphones

Condenser Microphones are commonly used in high-quality recording and broadcasting scenarios. When combined with wireless transmission systems (such as wireless lavalier Microphones or handheld condenser wireless Microphones), the role of the antenna distributor remains significant.

Ensuring compatibility between phantom power and wireless transmission (see “Phantom Power for Microphones Explained”);

Enhance voice clarity and dynamic performance (refer to “Dynamic Range of Microphones Explained”);

Reduce the impact of external electromagnetic interference on high-frequency response (combined with “Microphones Frequency Response Explained”);

These factors collectively determine the final audio quality and usability.

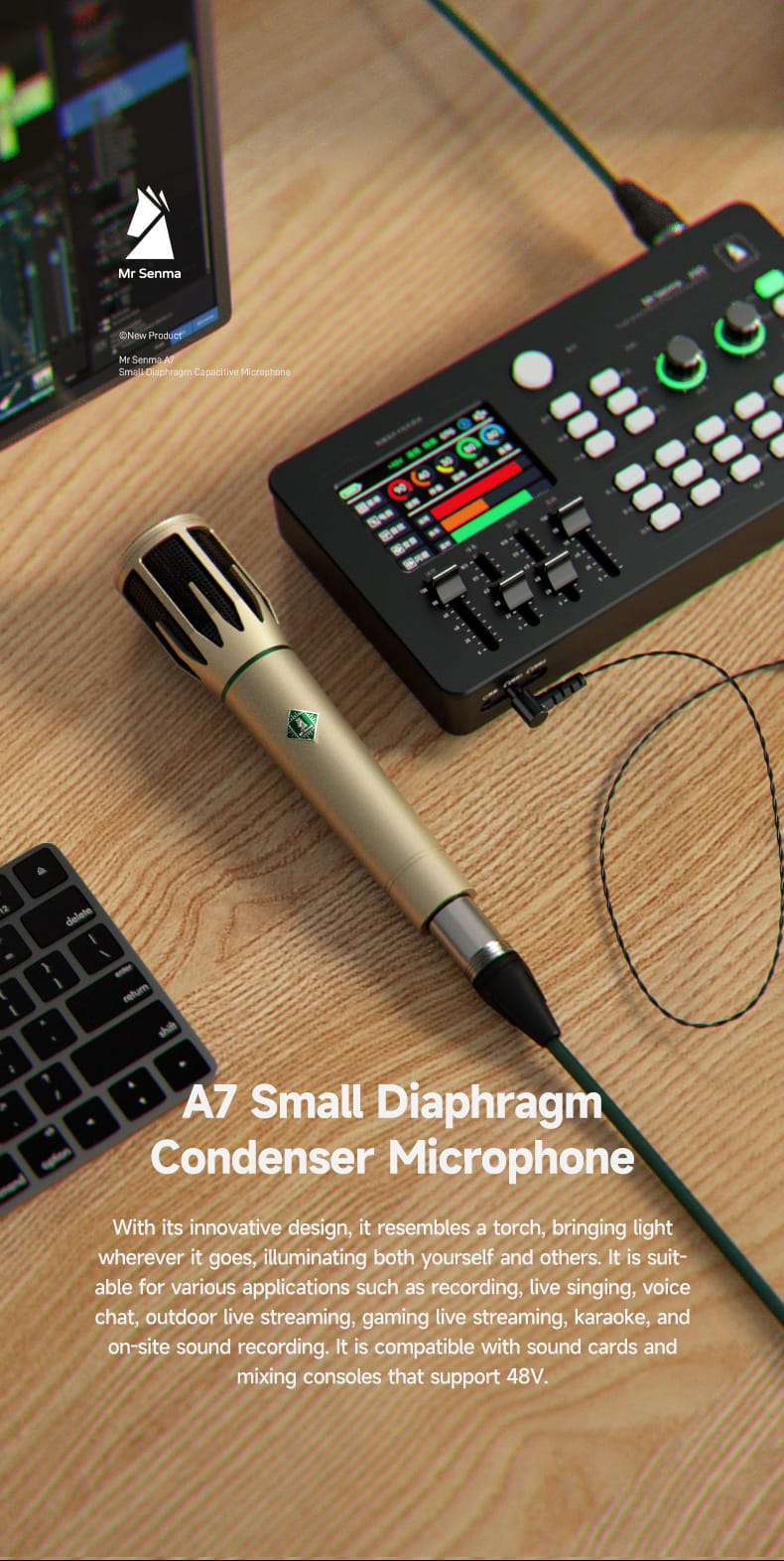

Mr Senma A7 Small Diaphragm Condenser Microphones

6. Typical application scenarios for antenna distributors

1. Performances and concerts

Multiple singers, hosts, or musicians using wireless Microphones simultaneously;

Use an antenna distributor to centrally manage antenna signals, avoiding channel conflicts and disconnections.

2. Meetings and Speeches

When multiple speakers are present, use a unified reception system;

The distributor ensures stable, latency-free signals for each speaker.

3. Broadcasting and Television Production

Achieve synchronized recording of multiple wireless Microphones;

Reduce backstage wiring complexity and improve production efficiency.

4. Film and Documentary Production

In highly mobile and complex shooting conditions, a unified signal source is critical;

Using an active antenna distributor enhances long-distance audio reception capabilities.

7. How to choose the right antenna distributor?

When selecting an antenna distributor, consider the following key factors:

✅ Does it support the current wireless system frequency bands (UHF/VHF/2.4GHz)?

✅ Does it have low-noise amplification (LNA) functionality?

✅ Does the number of output channels meet the current system requirements?

✅ Does it have remote control or monitoring functionality (e.g., remote gain adjustment)?

✅ Are the interface types compatible with existing equipment (BNC/SMA/N-type)?

8. Antenna distributors are a critical component for the success of wireless Microphones systems

In modern wireless audio engineering, while Microphones antenna distributors do not directly participate in sound capture, they play a decisive role in signal transmission, system integration, and stability assurance.

Whether using wireless Microphones, dynamic Microphones, or condenser Microphones, when used in conjunction with wireless systems, they can all benefit from the signal optimization effects provided by antenna distributors. As demonstrated by our previous articles, such as “Detailed Explanation of Phantom Power for Microphones” “Detailed Explanation of Microphones Frequency Response” and “Detailed Explanation of Microphones Sensitivity” excellent audio performance is the result of a systematic engineering effort involving multiple technical components.

Only by comprehensively considering Microphones performance and its compatibility with peripheral devices can high-quality audio capture and transmission be truly achieved.
