Dynamic Range of Microphones Explained

Content Summary
microphones dynamic range is one of the core parameters for evaluating the performance of audio equipment. It is defined as the difference between the maximum sound pressure level that a microphones can capture without distortion and its equivalent noise level, measured in decibels (dB). This metric directly impacts the audio quality and stability of microphones in various scenarios such as recording studios, live performances, and voice recognition applications. Different types of microphones—such as condenser microphones, dynamic microphones, and wireless microphones—exhibit distinct characteristics in dynamic range performance due to differences in their structure, sensitivity, and circuit design. Condenser microphones typically offer the widest dynamic range (100–160 dB), making them ideal for high-fidelity recording; dynamic microphones are suited for high-intensity sound environments (80–110 dB); while wireless microphones require optimized preamplifier design to enhance dynamic performance while ensuring long-distance transmission. Combined with core parameters such as frequency response, output impedance, and sensitivity, dynamic range forms the foundation of the overall performance evaluation system for microphones.

Dynamic Range of microphones Explained: A Core Performance Indicator Affecting Audio Quality

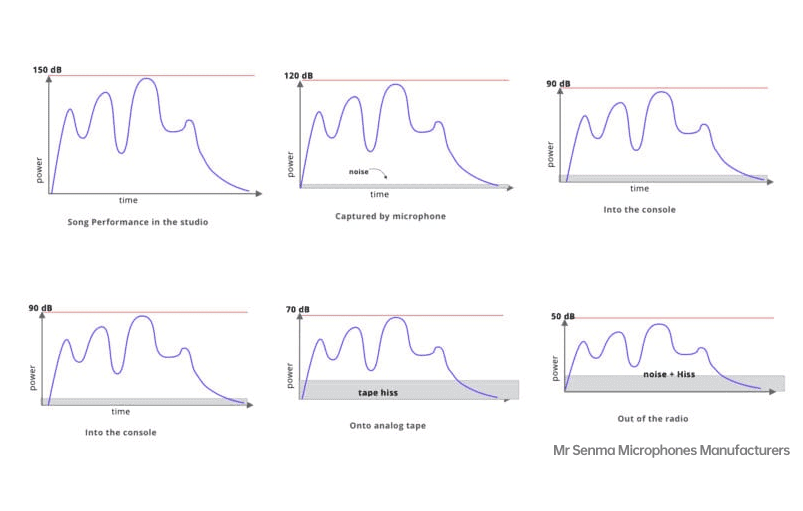

In audio systems, the dynamic range of a microphones is a technical parameter that is often overlooked but extremely critical. It is defined as the difference between the maximum sound pressure level of a plane wave at any frequency and any incident direction within the effective frequency range of the microphones, where the nonlinear distortion of the output voltage does not exceed the specified value, and the equivalent noise level of the microphones, expressed in decibels (dB).

In simple terms, dynamic range determines how quietly a microphones can “hear” and how loudly it can “handle,” serving as a key indicator of its ability to capture details and withstand overload. Whether in recording studios, live performances, or voice recognition devices, dynamic range directly impacts the final audio quality.

1. Definition and Technical Analysis of microphones Dynamic Range

microphones dynamic range refers to the intensity range of sound signals that a microphones can capture without noticeable distortion, typically expressed as:

Dynamic Range = Maximum Sound Pressure Level (Max SPL) – Equivalent Noise Level (EIN)

1. Upper Limit: Maximum Sound Pressure Level (Max SPL)

The maximum sound pressure level refers to the highest input sound pressure a microphones can withstand before producing specified distortion (e.g., 0.5%–3% THD). For example:

Condenser microphones, due to mechanical tension limitations of the diaphragm, experience nonlinear sensitivity distortion when sound pressure exceeds the critical threshold;

Laboratories generate adjustable sound fields ranging from 124 to 171 dB using high-sound-pressure units, and compare them with reference microphones to verify distortion rates;

Professional-grade condenser microphones can reach upper limits of 140–160 dB, such as the EV C015P microphones at 145 dB.

2. Lower limit: Equivalent Noise Level (EIN)

The Equivalent Noise Level represents the microphones's background noise level in a silent environment, calculated as follows:

High-sensitivity microphones can reduce the equivalent noise level at the same noise voltage. Professional microphones typically maintain an EIN between 15–25 dB, while titanium diaphragm microphones (such as the Brüel & Kjær 4955 model) can further suppress magnetic field interference noise.

3. Difference between dynamic range and linear range

It is important to distinguish between “dynamic range” and “linear range”:

The linear range refers to the sound pressure interval where sensitivity variation is ≤0.2 dB (typically 160 Hz to 1 kHz), and its range is necessarily smaller than the dynamic range;

For example, if a microphones has a dynamic range of 120 dB, its linear range may be only 110 dB.

2. The Impact and Role of Different Types of microphones on Dynamic Range

1. Wireless microphones

Wireless microphones transmit data via radio frequency signals. Although their operating principles differ from traditional wired microphones, their dynamic range is equally critical. Wireless microphones transmitters typically incorporate built-in preamplifiers to adjust gain and impedance matching. Proper output impedance settings enhance radio frequency signal stability, reduce the risk of signal dropouts, and, through the design of high-performance preamplifiers, can improve the overall system's dynamic range.

Advantages: Long-range transmission capability, suitable for mobile applications;

Challenges: The impact of battery power supply on preamplifier performance must be considered, which indirectly affects dynamic range.

2. Dynamic microphones

Dynamic microphones, due to their simpler internal structure, typically have higher output impedance (generally between 50 Ω and 300 Ω). This means that in practical applications, dynamic microphones must be paired with high-input-impedance preamplifiers to ensure efficient signal transmission.

Dynamic range characteristics: Dynamic microphones typically offer a dynamic range of 80–110 dB, making them suitable for high-sound-pressure-level environments such as live performances and drum kit pickup.

Advantages: Robust construction, strong overload resistance, no external power supply required;

Disadvantages: Limited high-frequency response, relatively narrow dynamic range.

3. Condenser microphones

Condenser microphones are renowned for their high sensitivity and wide frequency response, making them widely used in recording studios, podcasting, and film/TV production. Their output impedance is typically controlled within the range of 50–200 Ω.

Dynamic Range Characteristics: Condenser microphones generally have a dynamic range of 100–160 dB, making them suitable for capturing subtle sounds and high-fidelity recordings;

Advantages: Low output impedance design ensures stable signal transmission, enabling full-frequency response (20 Hz–20 kHz), wide dynamic range, and strong detail capture capability;

Notes: Most condenser microphones require 48V phantom power supply, are sensitive to static electricity, and require dust and moisture protection.

3. Key Factors Affecting microphones Dynamic Range

1. microphones Type and Size

Different types of microphones exhibit significant differences in dynamic range:

Condenser microphones, with their high sensitivity and flat frequency response (40Hz–18kHz), typically offer a dynamic range of 100–160dB;

Dynamic microphones typically offer 80–110 dB;

Smaller-sized microphones (e.g., 1/8 inch) have higher high-frequency response and sound pressure handling capability than larger models, with some products capable of withstanding sound pressure levels as high as 170 dB.

2. Circuit Design and Matching Components

The design of the preamplifier directly affects the dynamic range:

CCLD (IEPE) preamplifiers are limited by a 28V power supply, with a maximum output voltage of approximately 20Vpp, restricting the upper limit;

Using a classic 7-pin LEMO interface with a 120V polarization voltage can increase the upper limit by up to 12dB;

In high-temperature environments (>80°C), electronic noise significantly increases, so it is recommended to use an externally polarized microphones (such as the 1706 high-temperature preamplifier) to maintain stable performance.

3. Sound field types and usage environments

Depending on the application scenario, microphones can be categorized as follows:

Free-field type: Suitable for anechoic chambers, with better high-frequency response;

Sound pressure type: Used for simulation ears or near-field measurements, with better dynamic lower limit;

Diffuse-field type: Suitable for use in reverberant environments, with more stable dynamic range.

4. Impact of dynamic range on different application scenarios

1. Recording studios and music production

In recording environments, a wide dynamic range means the microphones can simultaneously capture the soft melodies of low-pitched voices and the intense bursts of high-pitched voices, ensuring the authenticity and completeness of the recording.

2. Live Performances and Speeches

Stage environments often involve significant dynamic changes, such as drum beats, shouting, and background noise. microphones with high dynamic range can handle these extreme conditions without distortion, ensuring the stability and clarity of sound output.

3. Video Conferencing and Speech Recognition

In remote communication scenarios, microphones need to capture faint voices in quiet environments while avoiding feedback when multiple people are speaking. A higher dynamic range helps improve speech recognition accuracy and call quality.

5. The Relationship Between Dynamic Range and Other Core Parameters

To better understand the role of dynamic range, we can compare it with several other important parameters previously discussed:

Relationship with Frequency Response

As discussed in “microphones Frequency Response Explained” frequency response describes a microphones sensitivity performance across different frequencies. Dynamic range, however, focuses on the range of sound intensity variations. Together, they determine whether a microphones can accurately reproduce sounds across the full frequency range at various volume levels.

Relationship with Output Impedance

As explained in “Output Impedance of microphones Explained” output impedance affects signal transmission efficiency and the integrity of frequency response. While it does not directly impact dynamic range itself, poor impedance matching during long-distance transmission may introduce noise or weaken high-frequency signals, thereby indirectly compressing the actual usable dynamic range.

Relationship with Microphones Sensitivity

As mentioned in “microphones Sensitivity Explained” higher sensitivity enhances a microphones's ability to capture faint sounds. This directly relates to the lower limit of dynamic range—higher sensitivity means a lower noise floor, thereby expanding overall dynamic performance.

6. How to Enhance a microphones's Dynamic Range?

To achieve a wider dynamic range, design optimization primarily relies on the following aspects:

1. Improved Diaphragm Structure

Using a larger diaphragm in a condenser microphones diaphragm enhances low-frequency response while maintaining good linear performance under high sound pressure levels.

2. High-Performance Preamplifier

The signal-to-noise ratio and distortion characteristics of the preamplifier directly impact the microphones's overall dynamic performance. Using low-noise, high-linearity amplification circuits helps expand the available dynamic range.

3. Digital Processing Technology

For digital microphones (such as MEMS microphones), using ADCs (analog-to-digital converters) with higher bit depths can significantly enhance dynamic range. For example, a 24-bit ADC can provide a theoretical dynamic range of up to 144dB.

4. Multi-microphones Array Fusion

By having multiple microphones work in tandem, it is possible to enhance high-sound-pressure tolerance while preserving low-frequency details, thereby achieving a broader dynamic response.

7. Dynamic range is a key metric for evaluating microphones performance

A microphones's dynamic range not only determines its adaptability in complex audio environments but also directly impacts recording quality, speech clarity, and system stability. Whether used for music recording, live sound reinforcement, or voice interaction, selecting a microphones with excellent dynamic range is crucial for achieving high-quality audio capture.

Combining the content we previously introduced, such as “Microphones Frequency Response Explained,” “Output Impedance of microphones Explained,” and “microphones Sensitivity Explained,” it is clear that excellent microphones performance is a systematic engineering effort built on multiple core parameters. Only by comprehensively considering all indicators can one truly select the ideal product that meets their specific needs.
