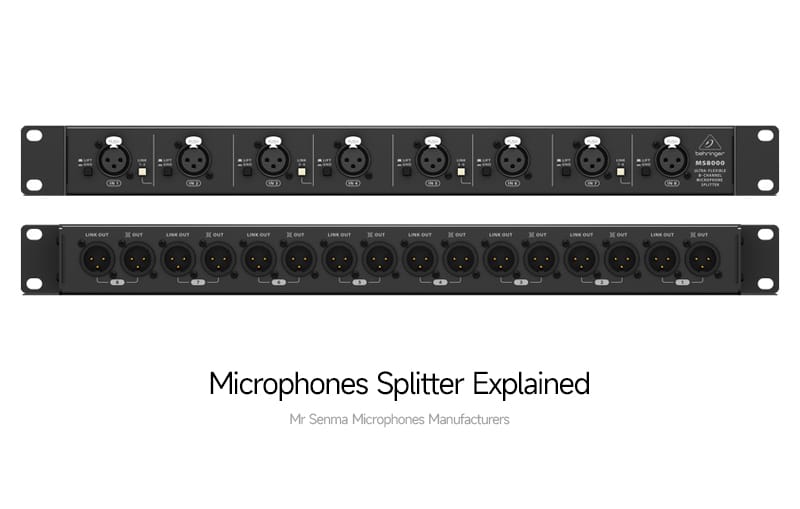

Microphones Splitter Explained

microphones Splitter Explained: The Core of Signal Distribution

In professional audio engineering, a microphones splitter (also known as a microphones distributor or microphones splitter) is a commonly used yet often underestimated critical device. It enables a single microphones signal to be transmitted simultaneously to multiple destinations, such as mixing consoles, monitoring systems, recording equipment, or broadcast systems, without causing signal attenuation or impedance mismatch.

This article will delve into the working principles, types, and practical applications of microphones distributors in different microphones types (condenser, dynamic, wireless), and combine it with our previous articles such as “microphones Frequency Response Explained” and “microphones Sensitivity Explained” to help readers fully understand its role in building high-quality audio systems.

1. What is a microphones splitter?

A microphones splitter (also known as a mic distributor) is an audio device used to replicate a single microphones signal and send it to multiple output channels. It is commonly used in live performances, conference systems, TV broadcasts, and recording studios to meet the needs of multiple systems operating in sync.

Basic functions include:

Splitting a single microphones signal into two or more channels;

Isolating electrical interference between output ports;

Maintaining signal integrity to prevent frequency response degradation or sensitivity loss caused by overload.

Based on power requirements, microphones splitters can be categorized into two main types:

Passive splitters: Do not require external power supply and use transformers to achieve signal isolation and distribution;

Active splitters: Feature built-in amplification circuits, suitable for long-distance transmission or high-precision recording applications.

2. Working Principle of microphones Distributors

The core of a microphones distributor lies in how its internal structure handles signal replication and isolation.

1. Transformer Coupling Method

Most passive splitters use transformers for signal isolation. This method effectively prevents ground loop noise while maintaining the microphones's normal operating voltage (e.g., 48V phantom power).

Advantages:

Low cost, simple structure;

Does not rely on external power;

Strong interference resistance.

Disadvantages:

High-frequency response may be limited;

May introduce slight phase shift for some high-end condenser microphones.

2. Active Electronic Amplification Method

Active distributors replicate signals using preamplifiers or buffers, typically offering wider frequency response and lower output impedance, making them suitable for high-fidelity recording or broadcasting environments.

Advantages:

Supports long-distance transmission;

Preserves high-frequency details;

High compatibility, supports phantom power transmission.

Disadvantages:

Higher cost;

Requires external power supply or battery power.

3. The Impact and Function of microphones Distributors on Different Types of microphones

1. Condenser microphones

Condenser microphones typically require 48V phantom power, so when using a microphones distributor, it is essential to ensure the device supports phantom power transmission.

Passive Distributors: Can transmit phantom power, but some models may experience slight high-frequency response degradation due to transformer design limitations.

Active distributors: More suitable for high-end condenser microphones, as they maintain their high sensitivity (see “Microphones Sensitivity Explained”) and wide dynamic range (see “microphones Dynamic Range Explained”), ensuring recording quality remains unaffected.

Additionally, in a recording studio environment, proper use of distributors allows both the main mixing console and backup recording equipment to access clean, consistent signal sources.

2. Dynamic microphones

Dynamic microphones do not require external power, so the requirements for distributors are relatively low.

Passive Distributors: The preferred option, as they are simple in structure, cost-effective, and effectively isolate ground loop noise;

Active distributors: Can also be used, but are not essential in most live sound reinforcement scenarios.

Since dynamic microphones have high output impedance (typically 50–300Ω), selecting a distributor with good impedance matching capability is particularly important to avoid signal loss and frequency response degradation (see “Detailed Explanation of Microphones Frequency Response”).

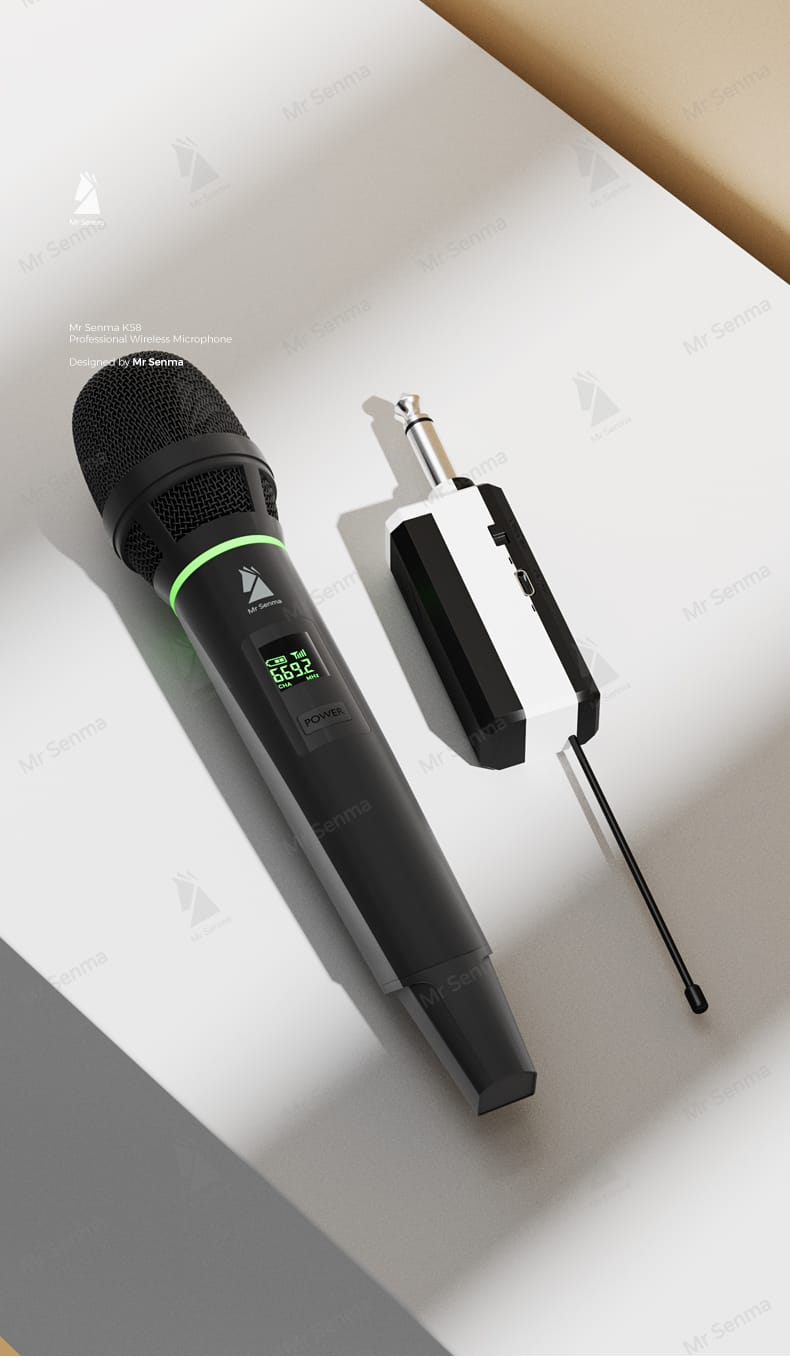

3. Wireless microphones

Wireless microphones systems typically consist of a transmitter and receiver, with their output signals being line level rather than traditional XLR microphones level. Therefore, when using a microphones distributor, note the following:

If wireless microphones signals need to be connected to multiple mixing consoles or recording devices, a dedicated distributor supporting line level input should be selected;

For large-scale events, it is recommended to use active distributors with buffer circuits to ensure signal stability and RF consistency;

Proper distributor layout helps reduce multipath interference and enhance the stability of the wireless system.

4. The Importance of microphones Distributors in Different Application Scenarios

1. Live Performances and Sound Reinforcement Systems

In live performances, microphones distributors are commonly used to send vocal or instrumental signals to the main mixing console, monitor system, and recording equipment separately. This not only improves efficiency but also ensures that each system operates independently without interference.

2. Recording Studios and Broadcast Production

In recording studios, distributors can be used to provide the main recording signal to the primary recording equipment while reserving additional channels for monitoring, post-mixing, or backup recording. This is crucial for ensuring recording safety and post-production flexibility.

3. Video Conferencing and Remote Interviews

In video conferences or remote interviews, it is often necessary to send the same microphones signal to multiple terminals such as cameras, mixing consoles, and live streaming platforms. microphones distributors play a critical role in such scenarios, ensuring that all devices receive clear, synchronized audio signals.

5. microphones distributors are an indispensable component of professional audio systems

Although microphones distributors are not as eye-catching as microphones themselves, their role in multi-system collaboration cannot be overlooked. Whether in recording studios, live performances, or remote communication scenarios, selecting and using microphones distributors appropriately is a critical step in ensuring audio signal integrity, system stability, and recording safety.

As demonstrated by our previous articles such as “Microphone Frequency Response Explained” “Microphone Sensitivity Explained” and “Dynamic Range of Microphones Explained” an excellent audio system is supported by multiple technical components. Only by comprehensively considering microphone performance and its compatibility with peripheral devices can high-quality audio capture and transmission be truly achieved.
