Output Impedance of Microphones Explained

Content Summary
The output impedance of a microphone is a critical yet often overlooked technical specification that significantly impacts signal transmission efficiency, frequency response, and overall audio quality. This article explains the fundamentals of microphone output impedance, its role in system performance, and how it affects different microphone types — including dynamic, condenser, and wireless mics. We also explore impedance matching principles, measurement methods, and real-world applications across studio recording, live sound, and conferencing systems. Combined with our earlier discussions on microphone frequency response and sensitivity, this guide provides a comprehensive understanding of how output impedance influences professional and consumer audio performance.

Introduction: Why is microphones output impedance so important?

In audio systems, microphones output impedance is a technical parameter that is often overlooked but extremely important. It not only determines the signal transmission efficiency between the microphones and the preamplifier, but also directly affects frequency response, signal-to-noise ratio, and overall audio quality.

This article will start with a basic definition and delve into the technical meaning of output impedance, measurement methods, and its impact on the performance of different types of microphones (such as dynamic microphones, condenser microphones, and wireless microphones). It will also draw on our previous articles, such as “microphones Frequency Response Explained” and “microphones Sensitivity Explained” to help you fully understand the role of this core parameter in practical applications.

1. What is microphones output impedance?

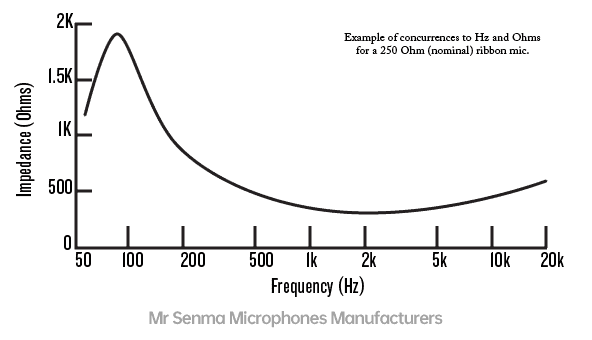

“microphones output impedance” refers to the AC resistance value presented at the microphones's output port, typically measured in ohms (Ω). It is an important electrical characteristic that measures the microphones's output circuit's ability to handle the load of subsequent devices (such as mixing consoles, mixers, or preamplifiers).

In simple terms, output impedance reflects a microphones's ability to transmit the electrical signals it generates to the next-stage equipment. If the output impedance is too high, it may result in:

Reduced frequency response

Output voltage attenuation

Signal distortion or increased noise

Therefore, in professional audio engineering, output impedance is one of the key reference criteria for evaluating a microphones's compatibility and stability.

2. Principles of matching output impedance with input impedance

To ensure the integrity and efficiency of signal transmission, the microphones's output impedance must be matched with the input impedance of the connected device. The following basic principles are typically followed:

The input impedance should be at least 10 times the output impedance

For example:

If the microphones's output impedance is 200 Ω, the preamplifier's input impedance should be no less than 2,000 Ω (2 kΩ)

Otherwise, it may result in high-frequency loss or low-frequency roll-off.

This matching mechanism is particularly important in long-distance transmission (such as live performances or broadcast systems). High output impedance combined with long cables can create an RC filtering effect, further weakening high-frequency signals and thereby affecting sound quality.

3. Classification and Comparative Characteristics of microphones Output Impedance

Based on output impedance range, microphones can be classified into the following two categories:

1. Low-impedance microphones (≤1 kΩ)

Common values: 200 Ω, 600 Ω

Advantages: Strong resistance to electromagnetic interference, suitable for long-distance transmission (up to 30–50 meters), minimal high-frequency attenuation

Application scenarios: Stage performances, recording studios, and other high-demand environments

2. High-impedance microphones (>1 kΩ)

Typical values: 20 kΩ–50 kΩ

Disadvantages: Susceptible to electromagnetic interference; high-frequency response degrades significantly when cable length exceeds 5 meters

Modern usage: Gradually phased out in professional systems

4. Relationship between different types of microphones and output impedance

1. Dynamic microphones

Dynamic microphones are widely used in live performances and vocal recording due to their simple structure and durability. Their output impedance typically ranges from 50–300 Ω.

Advantages:

Robust construction with strong overload capability

No external power supply required

Disadvantages:

Relatively high output impedance, requiring a preamplifier with high input impedance

High-frequency response may be limited, with noticeable dynamic range compression

Therefore, selecting an appropriate preamplifier is critical for maximizing the performance of dynamic microphones in recording studios or high-quality audio capture environments.

2. condenser microphones

Condenser microphones are renowned for their high sensitivity and wide frequency response, making them widely used in recording studios, podcasting, and film/TV production. Their output impedance is typically controlled within the range of 50–200 Ω.

Advantages:

Low output impedance for stable signal transmission

Full-frequency response (20Hz–20kHz)

Wide dynamic range with strong detail capture capability

Notes:

Most condenser microphones require 48V phantom power supply

Sensitive to static electricity; dust and moisture protection is necessary

The low output impedance design of condenser microphones ensures good signal quality and clarity even during long-distance transmission.

3. Wireless microphones

Wireless microphones transmit data via radio frequency signals. Although their operating principles differ from traditional wired microphones, output impedance remains one of the key factors affecting their performance.

Wireless microphones transmitters typically incorporate built-in preamplifiers responsible for adjusting gain and impedance matching. Proper output impedance settings help:

Improve radio frequency signal stability and reduce the risk of disconnections

Reduce power consumption and extend battery life

Enhance voice clarity and interference resistance

In applications such as conference systems, mobile live streaming, and stage performances, the reliability and audio quality of wireless microphones are particularly critical.

5. Impact of Output Impedance on System Performance

1. Interference Resistance

High-impedance microphones are more prone to noise introduction due to cable capacitance effects, especially in environments with strong electromagnetic interference (e.g., near stage lighting systems). Low-impedance designs effectively suppress common-mode interference and improve signal purity.

2. Frequency Response Integrity

Low-impedance microphones maintain high-frequency response better during long-distance transmission, ensuring the integrity of the full frequency range (20Hz–20kHz) signal. High-impedance microphones may experience high-frequency roll-off when cables are too long, affecting sound detail.

3. Dynamic Range Optimization

Output impedance is closely related to the equivalent noise level. At the same inherent noise level, microphones with higher sensitivity (units: mV/Pa) can expand the dynamic range through proper impedance matching, enhancing sound clarity and realism.

6. Measurement Methods and Standards for Output Impedance

To accurately assess microphones output impedance, the International Organization for Standardization has established relevant testing specifications, including:

IEC 60268-4  GB/T 12060.4-2012

Common measurement steps include:

Drive the microphones at a standard sound pressure level (94 dB SPL, 1 kHz sine wave);

Measure the open-circuit output voltage;

Connect load resistors of different values;

Record changes in output voltage under different loads;

Calculate the output impedance value using a formula.

This method ensures the reproducibility and consistency of measurement results, making it suitable for product quality control and technical documentation.

7. Considerations for Output Impedance in Practical Applications

Studio Recording

It is recommended to use condenser microphones with an output impedance of 50–200 Ω to efficiently match with high-end preamplifiers, achieving higher dynamic range and broader frequency response.

Live Performances

Due to the long cables between the microphones and the mixing console, it is recommended to keep the output impedance at 200 Ω or below to reduce high-frequency attenuation caused by cable capacitance and enhance interference resistance.

Conference Systems

Although the requirements for sound quality are not as stringent as in recording studios, clarity and intelligibility of speech must still be maintained. microphones with an output impedance not exceeding 150 Ω are recommended.

Consumer Electronics

In devices such as smartphones, headphones, and smart speakers, the traditional concept of output impedance has been replaced by digital interfaces (e.g., PDM, I²S). These devices do not require strict impedance matching, but issues related to digital signal integrity—such as clock synchronization, sampling rate, and data format—still need to be addressed.

8. microphones output impedance is a critical parameter that cannot be ignored

microphones output impedance not only affects the signal transmission efficiency between the microphones and subsequent devices but also significantly determines the overall performance of the audio system. Whether it is an analog or digital microphones, output impedance is a key technical parameter that must be closely monitored during selection, integration, and optimization.

As demonstrated in our previous discussions on “Microphones Frequency Response Explained” and “Microphones Sensitivity Explained: dBV vs dBFS for Analog & Digital Mics,” the performance of an excellent microphones is determined by multiple core parameters—only by comprehensively considering these factors can the best sound capture results be achieved.
