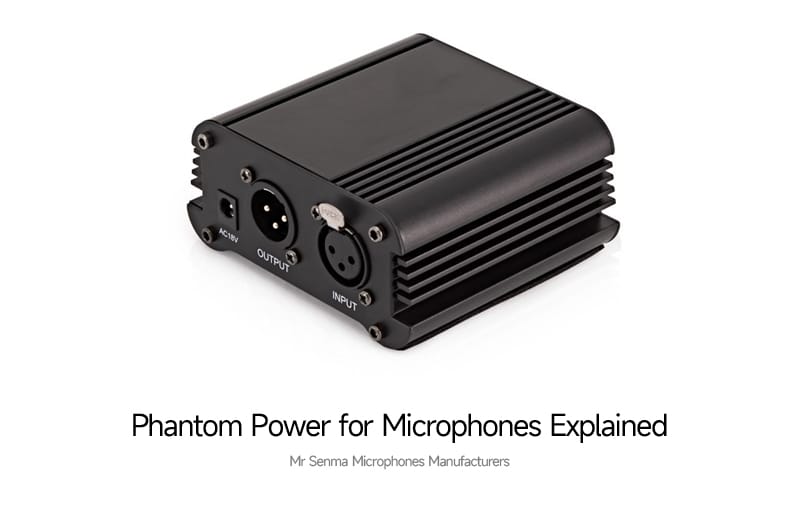

Phantom Power for microphones Explained

Phantom Power for microphones Explained: The Power Supply for Condenser microphones

In modern audio systems, phantom power is a critical electrical support technology that enables condenser microphones to transmit audio signals and supply DC power simultaneously through the same XLR signal cable without the need for an independent power cable.

This article will delve into the working principles of phantom power, voltage standards, compatible devices, and its practical impact on different types of microphones—particularly condenser microphones, dynamic microphones, and wireless microphones. Additionally, we will specifically address a common question: “Can accidentally enabling phantom power damage dynamic microphones or wireless microphones?” and provide a clear answer based on real-world examples.

1. What is phantom power for microphones?

Phantom power for microphones refers to a method of supplying DC voltage to condenser microphones via a two-core shielded cable (typically a three-pin XLR connector). This power supply method does not interfere with audio signal transmission, hence the term “phantom,” meaning it “invisibly” exists within the signal line.

The internationally recognized standards are IEC 61938 and IEC 60268-15, with the most common phantom power voltages being:

+48V DC (Phantom Power 48V), suitable for the majority of professional condenser microphones;

+12V or +24V, used for some small or electret condenser microphones.

This design significantly simplifies the connection process, enhancing the system's portability and reliability.

2. Working Principle of Phantom Power

Phantom power utilizes the balanced transmission structure of XLR cables to enable power supply and signal coexistence:

Audio signals are transmitted via the differential voltage between pins 1 and 2;

DC voltage is applied between pins 2 and 3 and pin 1, forming a symmetrical power supply path;

since this voltage manifests as “common-mode voltage” in the audio circuit, it does not affect the audio signal itself.

This design ensures:

the internal amplifier of the condenser microphones operates normally;

the diaphragm bias voltage remains stable;

while not affecting the input stage operation of the mixing console or preamplifier.

3. The Impact and Function of Phantom Power on Different Types of microphones

1. Condenser microphones

Condenser microphones are the primary beneficiaries of phantom power, as they require an external power source to maintain diaphragm bias and power the built-in amplifier.

High dependency: Most professional condenser microphones must rely on +48V phantom power to function properly;

Performance Enhancement: Stable phantom power helps maintain consistent high-frequency response (see “microphones Frequency Response Explained”) and high sensitivity performance (see “microphones Sensitivity Explained”);

Compatibility Requirements: Ensure that connected devices (such as mixing consoles or sound cards) support phantom power, and pay attention to switch controls to avoid damaging equipment during plugging/unplugging.

Additionally, in recording studios, radio stations, film and television production, and other scenarios, phantom power has become the standard configuration for condenser microphones.

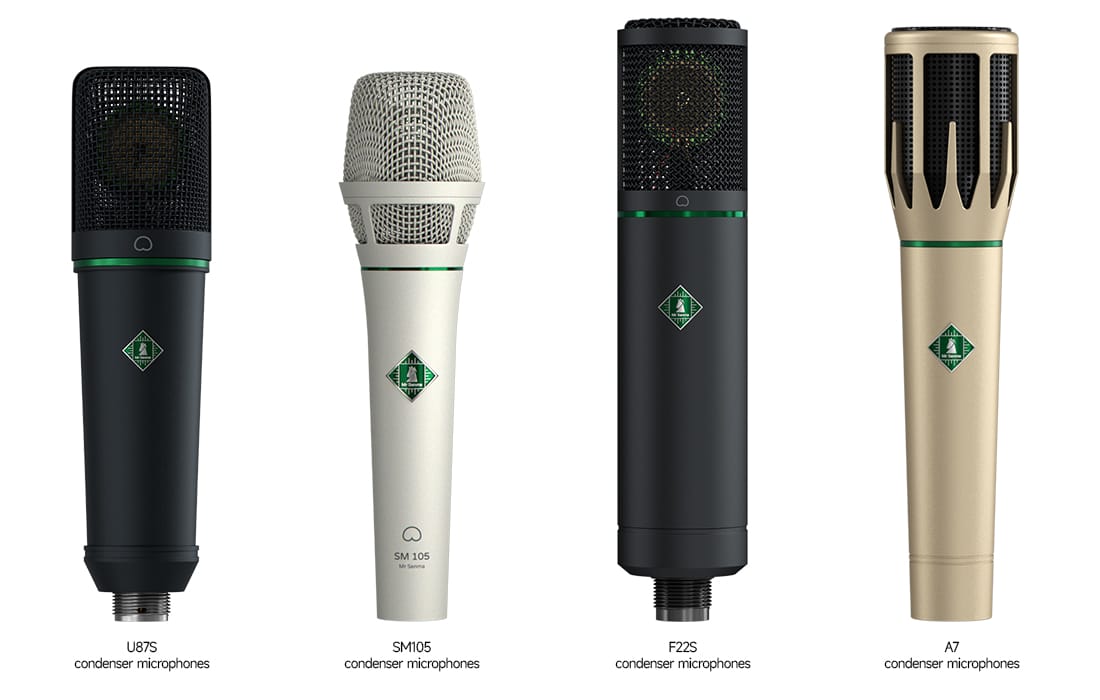

Mr Senma U87S,SM105,F22S,A7 Condenser microphones

2. Dynamic microphones

Dynamic microphones operate based on electromagnetic induction and do not require external power, so phantom power has no direct effect on them.

❓Does enabling phantom power cause any harm?

The answer is: Generally, it does not cause any damage.

This is because:

Dynamic microphones have no active electronic components and no bias voltage requirements;

XLR outputs use a balanced structure, effectively isolating phantom voltage;

Under international standards, phantom power design has fully considered the safety of non-powered microphones.

✅ Recommendation:

When using dynamic microphones, although there is no need to turn off phantom power and it will not cause damage, it is recommended to manually turn it off when possible to reduce potential interference;

especially when using older analog equipment or DI boxes, caution should still be exercised to prevent accidental feedback or short circuits.

Mr Senma A7,S-ONE,S2 wired dynamic microphones

3. Wireless microphones

Wireless microphones are pided into two types based on their power supply:

a. Receiver-powered wireless lavalier microphones

Some high-end wireless microphones systems use receiver-powered technology, where the transmitter is powered by phantom voltage provided by a mixing console or mixer;

These systems are commonly used in TV interviews, documentary filming, and other fields, reducing battery replacement frequency and improving stability.

b. Wireless systems powered by their own batteries

Most wireless microphones systems (such as Shure Axient and Sennheiser Digital 6000 series) are powered by their own batteries and do not rely on phantom power;

However, if connected to an active distributor or preamplifier, phantom power may still be required to power the associated equipment.

❓Is there any risk when connecting a wireless microphones to a channel with phantom power enabled?

Generally:

The wireless microphones itself will not be damaged by phantom power;

However, if the wireless receiver or adapter is not properly designed or grounded, it may introduce noise or interference;

Therefore, it is recommended to consult the device manual before connecting to ensure compatibility.

Mr Senma U4 VHF Wireless Microphones

4. Application scenarios and precautions for phantom power

1. Recording studios and podcasting environments

Professional recording studios almost entirely rely on phantom power to drive condenser microphones;

it is recommended to use a preamplifier with an independent phantom power switch for flexible control of each microphones channel.

2. Live Performances and Conference Systems

In large-scale events, enabling phantom power uniformly can simplify wiring and equipment setup;

However, care should be taken to avoid accidental operation on non-condenser microphones channels, which could cause potential interference.

3. Education and Remote Teaching

Using condenser microphones with phantom power can enhance voice clarity (see “Dynamic Range of microphones Explained”);

and are suitable for use with USB audio interfaces or digital mixers.

5. Phantom power is an indispensable part of modern audio systems

Although phantom power for microphones is hidden within signal transmission, it is one of the core drivers behind the widespread adoption of condenser microphones. Whether in recording studios, live performances, or remote communications, proper use of phantom power not only ensures stable microphones operation but also significantly improves audio quality and system flexibility.

Although dynamic microphones and wireless microphones typically do not suffer damage when phantom power is enabled, it is still recommended that users manage power settings appropriately based on device type to achieve optimal user experience and system stability.
