Rated Load Impedance of Microphones Explained

Rated Load Impedance of Microphone: A Critical Electrical Specification in Audio System Design

When constructing a high-quality audio system, in addition to focusing on core performance indicators such as Microphone Frequency Response, Microphone Sensitivity, Dynamic Range of Microphone, and Output Impedance of Microphones, there is another often overlooked but critically important electrical parameter—the rated load impedance of the microphone.

It not only affects signal transmission efficiency but also determines the compatibility between the microphone and the preamplifier, serving as the foundation for achieving stable sound quality and high-fidelity audio capture.

1. What is microphone rated load impedance?

According to the International Electrotechnical Commission (IEC) standard definition:

Microphone rated load impedance refers to the minimum load impedance value specified by the manufacturer to ensure the microphone operates normally. It is typically expressed in ohms (Ω).

In simple terms, it is the minimum input impedance value that the device connected to the microphone (such as a mixing console, mixer, or preamplifier) should provide to ensure the integrity and stability of signal transmission.

For example:

If a condenser microphone has a rated output impedance of 200 Ω, its recommended rated load impedance should be at least 1,000 Ω;

In some standards (such as GB/T 12060.4-2012), it is recommended that the input impedance be at least five times the microphone's output impedance to avoid signal attenuation and frequency distortion.

2. The Importance of Rated Load Impedance

1. Preventing Signal Attenuation and Voltage Drop

When the load impedance is significantly lower than the microphone's output impedance, it causes a voltage division effect, resulting in a significant reduction in output signal strength, particularly noticeable in the high-frequency range.

This phenomenon is especially pronounced in long-distance cable transmission, leading to blurred sound and loss of detail.

2. Maintaining Frequency Response Integrity

Mismatched load impedance introduces additional RC filtering effects, causing high-frequency roll-off. This directly impacts the accurate reproduction of sound quality in applications requiring wide frequency response coverage, such as vocal recording in studios or music sampling.

3. Reducing Distortion and Noise Interference

Properly setting the load impedance helps improve the system's signal-to-noise ratio (SNR) and reduce the impact of electromagnetic interference (EMI). Especially in environments with strong electromagnetic interference (such as near stage lighting systems), low-impedance matching can effectively suppress common-mode noise.

3. Relationship Between Rated Load Impedance and Input/Output Impedance

When understanding a microphone's rated load impedance, it must be considered in conjunction with the microphone's output impedance and the input impedance of the connected device. These three factors collectively form the foundational electrical matching relationship within the audio signal transmission chain.

Simply put, the microphone's output impedance refers to the AC resistance value presented at its output port, typically measured in ohms (Ω). This value reflects the microphone's load-carrying capacity during the electrical signal output process. The input impedance of the connected device, such as the input port of a preamplifier or mixing console, represents the device's “acceptance capability” for external signal sources when receiving signals.

According to industry standards and engineering practices, to ensure efficient and stable signal transmission, the input impedance of the connected device should be significantly higher than the microphone's output impedance. It is generally recommended that the input impedance be at least five times the microphone's output impedance, which effectively reduces signal attenuation caused by voltage division, particularly critical in the high-frequency range.

Based on this, the microphone's rated load impedance is the minimum input impedance value recommended by the manufacturer based on the microphone's design characteristics. It essentially serves as a “minimum requirement” for connected devices to ensure the microphone operates at its optimal performance. If the actual input impedance of the connected device is lower than this rated value, it may lead to issues such as uneven frequency response, muffled sound, and reduced signal-to-noise ratio, thereby affecting the final audio quality.

Therefore, when setting up an audio system, properly matching these three impedance parameters—microphone output impedance, rated load impedance, and device input impedance—is the foundation for achieving high-quality recording and sound reinforcement. Only by establishing a good matching relationship between these parameters can the microphone's performance potential be fully realized, ensuring that the audio signal remains clear, stable, and authentic throughout the entire transmission chain.

4. Differences in rated load impedance requirements for different types of microphones

1. Condenser microphones

Condenser microphones typically have lower output impedance (50–200 Ω), so their requirements for rated load impedance are relatively lenient. However, in digital audio interfaces (such as AES/EBU or USB), impedance matching must still be considered to prevent jitter and clock synchronization issues.

2. Dynamic Microphones

Dynamic microphones have higher output impedance (50–300 Ω) and thus require higher input impedance from the preamplifier. If the load impedance is insufficient, it can lead to muffled sound, reduced clarity, and poor performance in the high-frequency range.

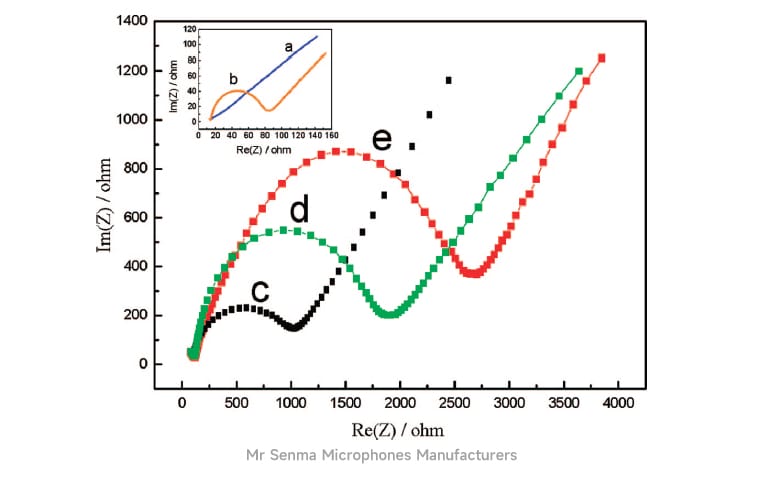

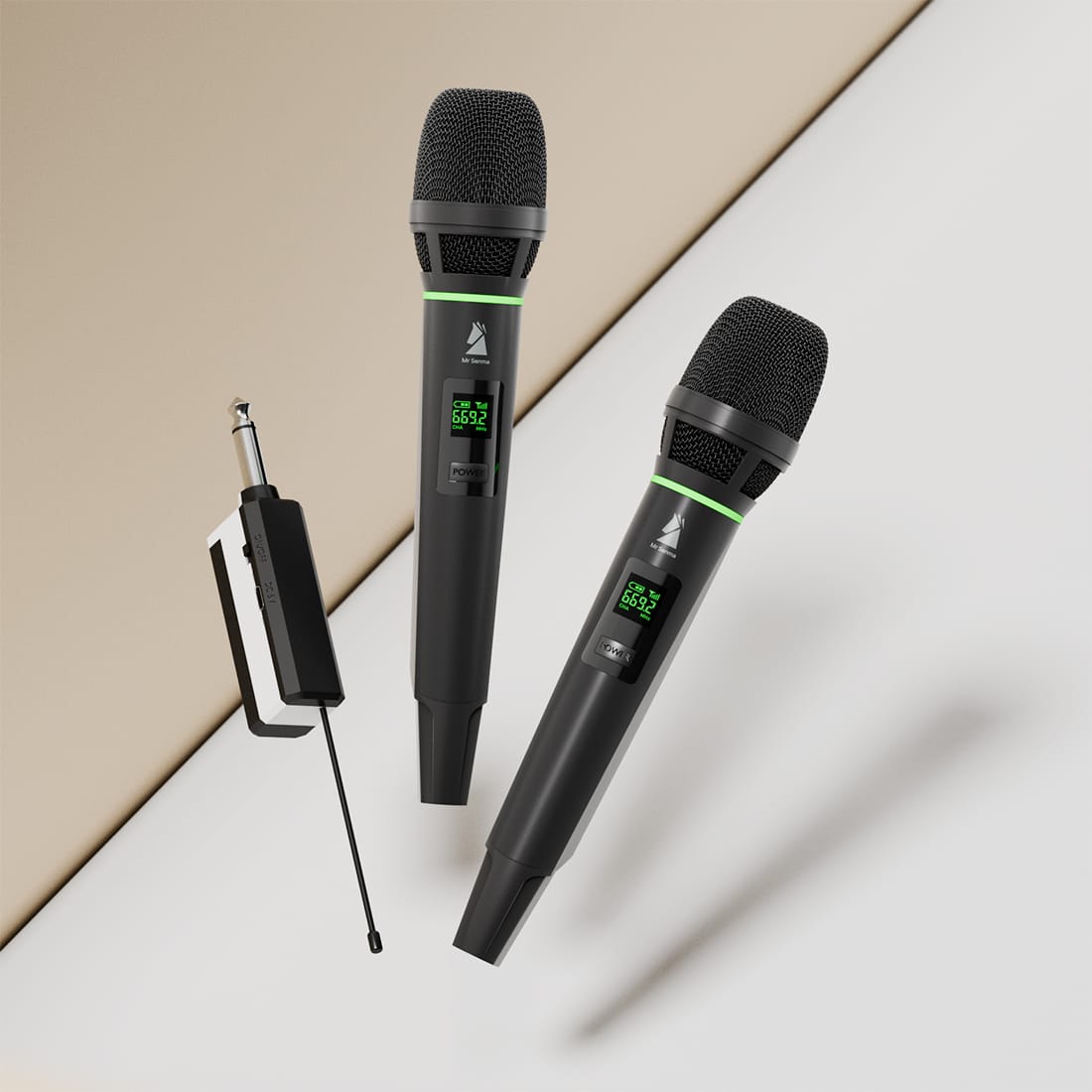

3. Wireless Microphones

Wireless microphones have built-in transmitter modules, and their internal circuit design is more sensitive to rated load impedance. Proper impedance matching not only improves RF signal stability but also extends battery life and reduces the risk of disconnections.

5. How to correctly set the rated load impedance?

1. Consult the product specification manual

Every professional-grade microphone specifies its output impedance and recommended rated load impedance value in the product manual. This is an important reference for selecting and pairing equipment.

2. Use a preamplifier with high input impedance

To ensure signal transmission quality, it is recommended to use a preamplifier with an input impedance of at least 10 times the microphone's output impedance. For example:

If the microphone's output impedance is 200 Ω, the preamplifier's input impedance should be ≥ 2,000 Ω (2 kΩ).

3. Control cable length and shielding quality

When laying cables over long distances, choose audio cables with low capacitance and high shielding performance to minimize the impact of distributed capacitance on high-frequency response.

6. The importance of rated load impedance in different application scenarios

1. Recording studios and music production

In recording studio environments, where sound quality requirements are extremely high, even minor signal losses can affect the expressiveness of the final work. Therefore, strictly adhering to rated load impedance matching rules is crucial for ensuring the authenticity and dynamic range of recordings.

2. Live Performances and Sound Reinforcement Systems

In stage performances, the distance between microphones and mixing consoles is often over 10 meters or longer. In such cases, proper load impedance settings are essential for maintaining clear vocal quality and stable system performance.

3. Video Conferencing and Speech Recognition

In remote communication scenarios, while the requirements for frequency response bandwidth are not as stringent as in music recording, proper impedance matching can still enhance speech clarity, reduce background noise interference, and improve speech recognition accuracy.

7. Rated load impedance is one of the foundations of professional audio system design

Although microphone rated load impedance is a basic electrical parameter, it has a profound impact on the overall performance of an audio system. Whether considering signal integrity, frequency response, or interference resistance, scientifically and reasonably setting load impedance is an indispensable step in achieving high-quality audio capture.

Combining the previously discussed topics in “Microphone Frequency Response Explained,” “Microphone Sensitivity Explained,” and “Dynamic Range of Microphones Explained,” it becomes clear that excellent microphone performance is a systematic engineering endeavor built upon multiple core parameters. Only by comprehensively evaluating all relevant metrics can one truly select the ideal product tailored to their specific needs.
