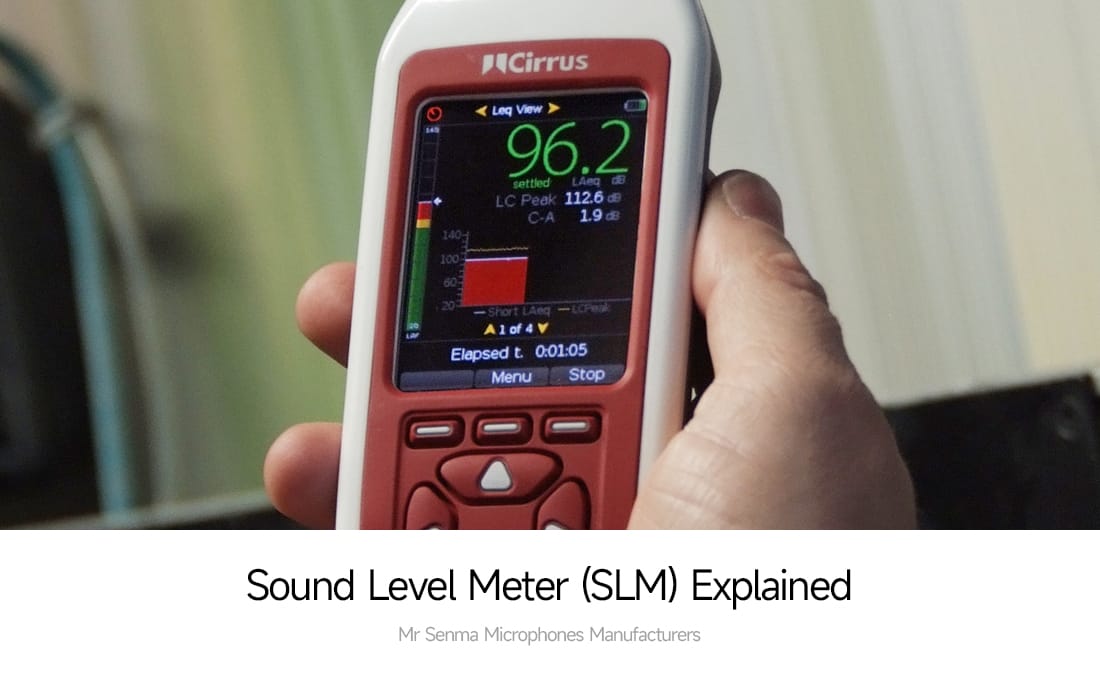

Sound Level Meter (SLM) Explained

Content Summary

This article provides a detailed introduction to the definition, measurement principles, and key role of sound level meters in microphone audio systems. Based on the national standard GB/T 2900.86–2009 and the IEC 61672 technical specification, it explains the application of Sound Level Meters in assessing environmental noise, determining microphone distortion risks, and optimizing wireless microphone transmission.

By analyzing its specific impact on condenser microphone, dynamic microphone, and wireless microphone, this article helps readers better understand how to utilize sound level meters to enhance the overall performance of audio systems.

Sound Level Meter, SLM Explained

In audio engineering and sound system design, the sound level meter (SLM) is a core device used to measure sound intensity. According to the national standard GB/T 2900.86–2009:

“A sound level meter is an instrument with standard frequency weighting and exponential time weighting, used to measure sound levels.”

This definition not only covers its basic functions but also highlights its critical role in modern audio systems — by precisely quantifying environmental noise, evaluating microphone pickup performance, and optimizing recording and sound reinforcement settings, it provides a scientific basis for audio quality.

This article will comprehensively analyze the working principles, core parameters, and specific application values of sound level meters in wireless microphone, dynamic microphone, and condenser microphone, combining the latest industry standards (such as IEC 61672-1:2013), acoustic engineering practices, and microphone application requirements.

1. Core Technical Architecture and Working Principles of Sound Level Meters

Modern sound level meters are not merely simple Decibel measurement tools but precision instruments integrating multiple standard modules. Their core technical architecture includes:

Frequency weighting networks (A/C/Z): Simulate human auditory response to correct perceptual differences across different frequency bands;

Time weighting algorithms (F/S/I): Dynamically respond to changes in different types of sound sources;

Digital signal processing unit (DSP): Enable high-precision real-time analysis;

Data recording and communication modules: Support remote monitoring and intelligent control;

For example:

The A-weighting network can achieve low-frequency attenuation of 20–40 dB, making it suitable for voice-related scenarios such as broadcasting and meetings;

The C-weighting maintains full-frequency response and is commonly used for high-sound-pressure-level testing, such as explosions or industrial noise;

The Z-weighting serves as an “unweighted” mode and is widely applied in fields such as building acoustics reverberation measurement and spectrum analysis;

Additionally, Class 1 precision sound level meters must comply with IEC 61672 standards, with frequency response error controlled within ±0.7 dB (20 Hz – 20 kHz), and time response characteristics strictly adhering to the three standard modes: F (fast 125 ms), S (slow 1 s), and I (impact response 5 s).

2. Application Logic and Engineering Adaptation of Frequency Weighting Networks

A-Weighting: The Standard Choice Aligned with Human Hearing Perception

The A-weighting network is designed based on the non-linear perception curve of human hearing, with significant attenuation in the low-frequency range (<500 Hz). This weighting method makes it the preferred choice for environmental noise assessment, widely applied in standards such as ISO 1996 for urban noise monitoring.

For example:

In a meeting room environment, A-weighting can accurately assess whether background noise is Below 45 dB(A);

In film and television recording, ITU-R BS.1770 requires program mastering loudness to be controlled between -24 LUFS and -16 LUFS, typically using K-weighting (combining A/C characteristics) for loudness modeling;

C-weighting: The ideal solution for high Sound Pressure Level measurements

C-weighting retains a broader frequency response range, making it suitable for measuring sudden, high-intensity sound sources such as explosions or aircraft engines.

For example:

When industrial site noise exceeds 100 dB, it is recommended to switch to C-weighting mode to obtain a more accurate energy distribution;

In automotive NVH testing, the A + slow-speed combination is used to assess in-vehicle noise comfort, with target values typically set below the NR-25 curve;

Z-weighting: The baseline mode for raw data collection

Z-weighting, also known as “zero-weighting,” does not apply any frequency weighting and serves as the foundational data source for research and acoustic modeling.

For example:

In building acoustics measurements, Z and C-weighted data must be recorded simultaneously to calculate room reverberation time and standing wave distribution;

Acoustic cameras utilize Z-weighted data combined with beamforming technology to visualize spatial Sound Pressure levels, with positioning errors less than ±0.3 dB;

3. Time-Weighted Algorithms: Capturing Transient and Steady-State Sound Fields

Fast (F): The ideal choice for capturing transient peaks

The Fast mode has a response time of 125 ms, suitable for capturing brief, intense changes in sound.

For example:

Gunshots, impacts, and other transient noises are commonly detected using the F mode for peak detection;

Noise certification for medical MRI equipment requires enabling F + Impact mode to ensure compliance with the limits specified in IEC 60601-1-8;

Slow (S): The commonly used mode for steady-state noise assessment

The Slow mode response time is 1 second, suitable for energy integration statistics of long-term, steady sound fields.

For example:

In factory assembly line noise monitoring, S mode provides a stable Leq equivalent value with an error of less than ±0.5 dB;

In occupational health, OSHA regulations stipulate that if LAeq,8h exceeds 85 dB(A), noise reduction measures must be implemented;

Impulse Mode (I): Specifically designed for pulse noise

The Impulse mode has a response cycle of up to 5 seconds, used to identify long-duration pulse noise.

For example:

Aviation engine test noise assessments must use the Impulse mode to comply with IEC 61672 measurement standards for pulse noise;

In construction site blasting operations, sound level meters must be used with an impulse weighting module to ensure data compliance with ISO 1996-2 limits;

4. Technical Evolution and Intelligent Trends in Sound Level Meters

Traditional sound level meters rely on analog circuits for frequency weighting, which can lead to errors due to component aging. Modern devices have shifted to digital signal processors (DSP) and FPGAs for precise algorithm calculations, reducing frequency response calibration errors to ±0.2 dB.

Current industry trends include:

IoT integration: For example, Siemens UltraSense supports the LoRaWAN transmission protocol, enabling the creation of noise maps within a 5-kilometer range;

Blockchain evidence storage: ISO 16297:2023 recommends using blockchain to store noise data, ensuring its immutability;

AI-driven analysis: LSTM neural networks can predict the spatiotemporal distribution of traffic noise with an error rate below 2 dB;

Localized edge computing: ISO 3745:2023 introduces an AI model embedded architecture to enable real-time generation of standardized reports;

5. Applications of sound level meters in different types of microphone

1. Condenser microphone

Condenser microphone are known for their high sensitivity and wide frequency response, making them suitable for recording studios, podcasts, and broadcasting.

Mr Senma f22S large diaphragm condenser microphone

Use a sound level meter to measure background noise in the recording environment and determine if it is below 40 dB(A);

If the input sound pressure approaches its maximum SPL (e.g., 130 dB), adjust the position or use an attenuator;

Combine with “Detailed Explanation of Microphone Sensitivity” to further optimize recording level control;

2. Dynamic microphone

Dynamic microphone are simple in structure and highly durable, making them suitable for live performances and speeches.

Mr Senma S-ONE Dynamic Vocal microphone

In high sound pressure environments (such as in front of drum sets or guitar speakers), a sound level meter can help determine if the microphone has exceeded its tolerance range;

If the measured sound pressure is 135 dB and the microphone's maximum SPL is 140 dB, it is still within the safe range;

It can also be used to assess feedback risk and adjust mixing settings promptly;

3. Wireless microphone

In wireless microphone systems, sound pressure levels also affect RF transmission quality.

Mr Senma P200 Dual Channel Professional Wireless Microphone

If the input sound pressure is too high, it may cause signal compression or distortion;

Using an A-weighted sound level meter can more accurately assess speech intelligibility;

In long-distance transmission, a sound level meter can help determine whether the signal strength at the receiving end is stable;

6. Purchasing Guide: How to Choose the Right Sound Level Meter for Your Needs?

1. Accuracy Grade: Laboratory vs. Daily Use

Grade 1 sound level meters (e.g., Norsonic Nor140): Suitable for laboratory certification testing; the temperature compensation module maintains ±0.5 dB stability from -10°C to 50°C;

Grade 2 devices (e.g., Decibel X Pro): Suitable for daily environmental monitoring needs, supporting Bluetooth transmission and FFT analysis;

2. Functional Extensions: Optional Features for Special Scenarios

Impact weighting module: Used in construction sites, aviation testing, and other scenarios;

Integrator module: Suitable for OSHA noise exposure assessments;

Data export formats: Supports CSV/JSON formats, with time stamp accuracy of ±10 ms;

7. Sound level meters are indispensable measurement tools in audio systems

Whether you are a sound engineer, audio engineer, or general user, the importance of sound level meters cannot be overlooked when selecting and using microphone.

They not only help us understand the physical characteristics of sound but also guide us in reasonably configuring equipment in different environments.
