Sound Power vs Sound Power Level: Key Differences Explained

Content Summary

This article provides a detailed explanation of the definitions, units, and key differences between sound power and sound power level.

Based on national standards GB/T 3947–1996 and GB/T 2900.86–2009, it explains the application of sound power in assessing microphone input Dynamic Range, environmental noise control, and wireless microphone stability.

By analyzing their specific impacts on condenser microphones, dynamic microphones, and wireless microphones, the article helps readers better understand how to utilize sound power to optimize the overall performance of audio systems.

Sound Power and Sound Power Level: Understanding the Nature of Sound Energy in Microphone Systems

In audio engineering and sound system design, “sound power” and “sound power level” are two fundamental yet often confused concepts. They help us understand the energy characteristics of sound from its source and play a crucial role in microphone selection, environmental noise control, and sound system optimization.

According to national standards:

GB/T 3947–1996 Definition 2.30 defines sound power as: “The amount of sound energy passing through a given area per unit time, measured in watts (W).”

GB/T 2900.86–2009 Definition 801-22-05 states: “Sound power level is the common logarithm of the ratio of a given sound power to a reference sound power, expressed in Decibels (dB), equal to 10 times the value.”

This article will delve into the definitions, calculation methods, and application value of these two concepts in devices such as condenser microphones, dynamic microphones, and wireless microphones. By combining content from “Detailed Explanation of Microphone Frequency Response,” “Detailed Explanation of Microphone Sensitivity,” and “Detailed Explanation of Phantom Power for Microphones,” this article aims to help you build a comprehensive audio knowledge system and enhance your understanding and application of audio systems.

1. What is sound power? Definition, units, and application scenarios

1. Basic Definition of Sound Power

Sound power describes the total acoustic energy emitted by a sound source per unit of time. It is a physical quantity used to measure the energy output of the sound source itself, rather than the perceived loudness of the sound at a specific point.

For example:

The average sound power emitted by a person speaking normally is approximately 1 microwatt (μW);

A large loudspeaker system at a concert venue may output several watts or even tens of watts of sound power;

Although these values may seem small, due to the extremely wide range of human hearing, even weak sound power can elicit significant auditory responses.

2. What are the units of sound power?

The basic unit of sound power is the watt (W), but in practical applications, since sound energy is typically small, commonly used units include:

Microwatts (μW): 1 μW = 1×10⁻⁶ W;

Pico-watts (pW): 1 pW = 1×10⁻¹² W;

These units are convenient for describing the sound energy levels commonly encountered in daily life.

2. What is sound power level? How is it calculated?

To more intuitively compare the energy output of different sound sources, the sound power level (SWL) is introduced as a logarithmic expression.

Its calculation formula is as follows:

SWL (dB) = 10 × log(W₁ / W₀)

Where:

W₁ is the measured sound power;

W₀ is the reference sound power, typically set to 1 pW (i.e., 1×10⁻¹² W);

This formula converts the linearly varying sound power into a logarithmic scale expressed in deciBels (dB), allowing us to represent large energy changes with smaller numbers.

For example:

If the sound powers of two sound sources are 1 μW and 10 μW, respectively, their sound power level difference is 10 dB;

If they are 1 μW and 100 μW, respectively, the difference is 20 dB;

This expression allows us to more easily compare sound energy output across different devices or environments.

3. Key Differences Between Sound Power and Sound Power Level

Although sound power and sound power level are closely related, there are significant differences between them:

Sound power reflects the actual energy emitted by the sound source itself, measured in watts (W);

Sound power level is the logarithmic result obtained by comparing this energy to a reference value, measured in decibels (dB);

In other words:

Sound power is an absolute value;

Sound power level is a relative value used for standardized comparison;

This distinction is crucial in practical applications. For example, when assessing the noise level of audio equipment, sound power level is typically used for labeling because it facilitates comparisons across products.

4. The Role of Sound Power and Sound Power Level in Microphone Systems

Although microphones themselves do not directly measure sound power or sound power level, understanding these parameters is essential for selecting the appropriate microphone type, evaluating recording environments, and optimizing audio system performance.

1. Impact on the Maximum Input Sound Pressure Level (Max SPL) of Microphones

The maximum input Sound Pressure level (Max SPL) that a microphone can withstand is essentially a limit on the input sound power.

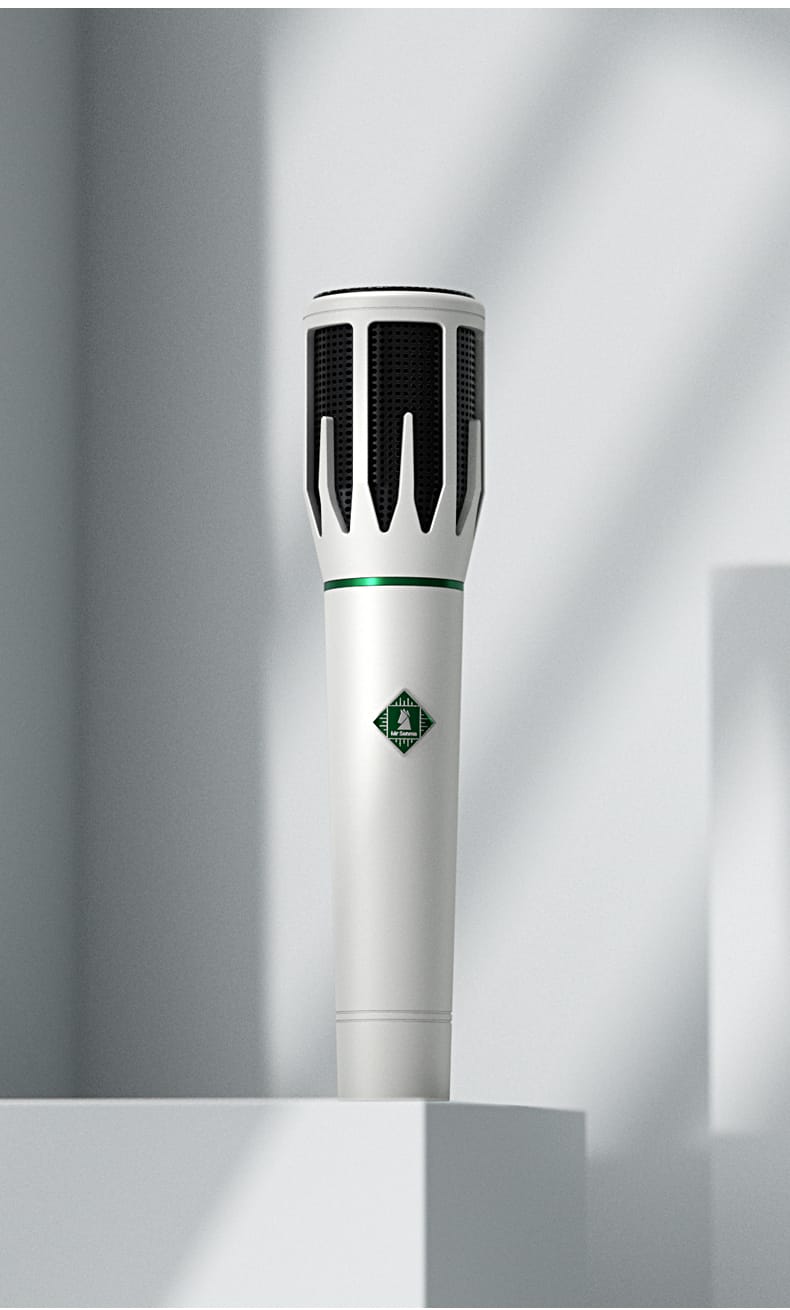

Mr Senma A7 Small Diaphragm Condenser Microphones

For example:

A certain condenser microphone has a maximum SPL of 130 dB;

This means it can safely handle an input sound power of approximately 0.01 W/m²;

If this value is exceeded, it may cause the preamplifier to overload or the diaphragm to be damaged;

Therefore, in high-sound-pressure environments (such as drum recording or industrial sites), microphones with a high Max SPL should be selected to ensure they can handle the high sound power from the sound source.

Combined with “Detailed Analysis of Microphone Frequency Response,” further analysis of the microphone's performance in specific frequency bands can be conducted.

2. The Relationship Between Wireless Microphone System Stability and Sound Power

In wireless microphone systems, sound power not only affects the microphone's sound pickup performance but may also impact the stability and clarity of the RF signal.

Mr Senma k2 portable Wireless microphones

For example:

When input sound power is too high, the preamplifier may enter compression mode;

This can cause signal distortion or unstable modulation;

An A-weighted Sound Level Meter can be used to monitor input sound pressure, thereby indirectly controlling the impact of sound power;

Combined with the “Detailed Explanation of Microphone Phantom Power,” you can also analyze whether the power supply meets the requirements under high-power input conditions.

3. Compatibility of dynamic microphones with sound power

Dynamic microphones, due to their robust structure and strong noise resistance, are widely used in high-intensity sound field scenarios.

Mr Senma S-ONE Dynamic Vocal Microphones

For example:

When recording in front of a guitar amplifier, sound power can reach 0.1 W;

at this point, dynamic microphones, with their high Max SPL and excellent mechanical durability, become an ideal choice;

In contrast, ordinary condenser microphones may experience clipping due to their inability to withstand such high input power;

5. Sound Power and Environmental Noise Control

In spaces with high audio quality requirements, such as recording studios and conference halls, the concept of sound power is also applied to environmental noise control.

For example:

The sound power output of equipment such as air conditioning and ventilation systems directly affects indoor background noise;

By calculating the sound power levels of each sound source, the overall sound pressure level can be predicted, and sound-absorbing measures can be implemented;

Combined with “Detailed Explanation of Microphone Sensitivity,” it can be determined whether the microphone will be affected by low-frequency noise interference;

Additionally, sound power data is also used in architectural acoustics design for reverberation time modeling and standing wave prediction.

6. How to measure sound power and sound power level? Common methods and standards

Since sound power is an inherent characteristic of the sound source, it cannot be directly measured using a standard microphone. Common measurement methods include:

Reverberation chamber method: Inferring sound power by measuring the total sound pressure level in a closed space;

Semi-anechoic chamber method: Measuring sound pressure distribution in a non-reflective environment;

Comparison method: Comparing the device under test with a standard sound source of known sound power;

International Standard ISO 3745 provides a standardized procedure for measuring sound power under laboratory conditions, applicable to the calibration of broadcasting equipment, industrial noise sources, and microphone testing environments.

7. Sound power and sound power level are core metrics for understanding sound energy

Whether you are an audio engineer, sound recordist, or product designer, understanding the concepts of sound power and sound power level is crucial for grasping the essence of sound, optimizing microphone selection, and designing systems.

They not only help us understand the energy characteristics of sound from its source but also guide us in reasonably configuring equipment across different application scenarios. By combining content from “Detailed Explanation of Microphone Frequency Response,” “Detailed Explanation of Microphone Sensitivity,” and “Detailed Explanation of Phantom Power for Microphones,” we can comprehensively evaluate the overall performance of microphones.

Only by integrating theory with practice can we truly achieve high-quality audio capture and transmission.
